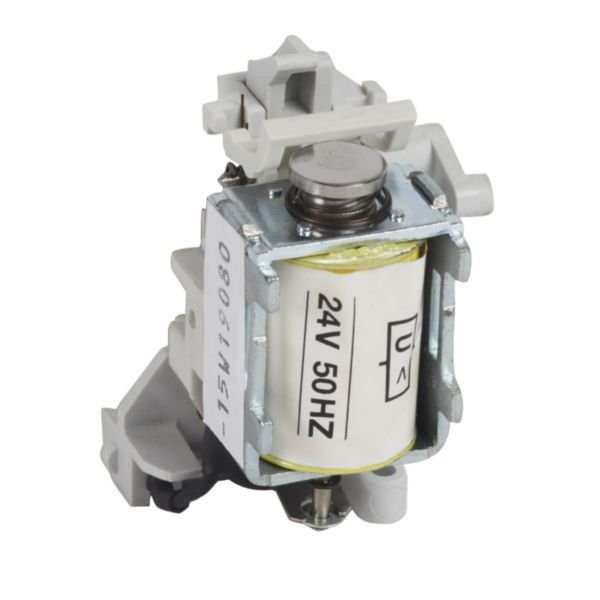

Undervoltage Releases for DRX DPX³ 24 V AC Remote Tripping Legrand
Undervoltage releases for DRX DPX³ are designed for remote tripping of circuit breakers, specifically the DPX³ 630 and 1600 models.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated control supply voltage AC 50 Hz: 24 V
- Rated control supply voltage AC 60 Hz: 24 V
- Voltage type for actuating: AC
- Power consumption: 5 VA
- Type of electric connection: Screw connection
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Delayed operation: No
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Allows remote tripping of DPX³ or DPX³ - I 630 and 1600
- Rated control supply voltage: 24 V AC 50/60 Hz
- Power consumption: 5 VA
- Screw connection type
- No delay in operation
- Compatible with power circuit breakers, off-load switches, motor safety switches, and overload relays
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with circuit breakers.
Applications
- Remote tripping of DPX³ 630 and 1600 circuit breakers
- Use with power circuit breakers, off-load switches, motor safety switches, and overload relays
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps improve electrical safety and reduce risk of equipment damage
- Supports efficient electrical system management to prevent energy waste
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Undervoltage Releases for DRX/DPX³ - 24 V~ are available for immediate purchase, ideal for electrical switchboards and power cabinet applications.
