UNEF Thread Converter 3/4in UNEF to M20 Nickel Brass Adaptaflex

BRAND: CABAC
SKU: B/075UNEF-M20/TC
$24.80 List price: $33.10
+ −
30 Days Return Electricians Unlock Trade Access

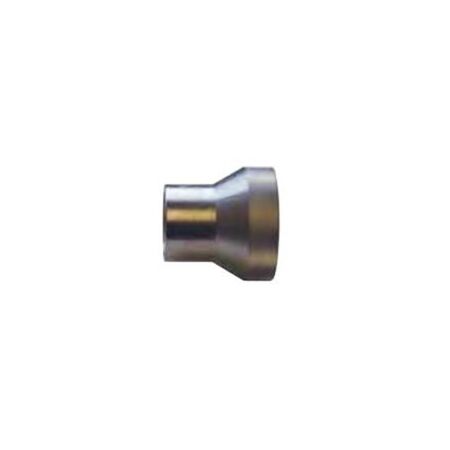

Adaptaflex thread converter features 3/4in UNEF to M20 conversion, nickel plated brass and very high UV resistance. Ideal for adapting metallic conduit fittings.

Alternatively Known As: UNEF Thread Converter, Conduit Thread Adaptor, 3/4 in UNEF to M20 Adaptor

Technical Specifications
  • Thread A: 3/4 in UNEF, 20 TPI
  • Thread B: M20 x 1.5
  • Thread Configuration: Two internal female threads
  • Material: Nickel-plated brass
  • Overall Length: 23 mm
  • Outside Diameter: 24 mm
  • Operating Temperature: Static applications from -50°C to +300°C
  • Product Type: Metallic conduit thread converter
  • Installation: For threaded entries and knockouts; locknut ordered separately
  • Product Reference: B/075UNEF-M20/TC
  • Dimensions (H x L x W): 24mm x 23mm x 24mm
  • Weight: 0.1 kg
Key Features
  • Converts 3/4 in UNEF female thread to M20 x 1.5 female thread
  • Nickel-plated brass construction
  • Very high UV resistance for exposed installations
  • Compatible with threaded Adaptaflex metallic conduit fittings
  • Designed for changing conduit thread type and size
  • Compact cylindrical form for conduit and cable-protection systems
Applications
  • Adapting metallic conduit fittings between UNEF and metric M20 threads
  • Electrical cable protection and flexible metallic conduit systems
  • Threaded entries and knockout installations
  • Outdoor or exposed conduit installations requiring UV-resistant fittings
Standards & Compliance
  • AS/NZS 61386 series — conduit systems for cable management, including requirements applicable to flexible metallic conduit systems; verify project-specific product certification before installation
Environmental Benefits
  • Nickel-plated brass is durable and recyclable, helping reduce replacement waste
  • High UV resistance supports longer service life in exposed installations
  • RoHS and REACH compliance are listed for Adaptaflex UNEF converter products in the ABB catalogue range
Warranty Information

Covered by applicable ABB standard warranty and distributor terms; a product-specific warranty duration was not published. Confirm warranty conditions with the authorised Australian distributor.

Available Now

Available through ADAPTAFLEX/ABB and authorised Australian electrical and cable-management distributors.
