UNEF Thread Converter 7/8in UNEF to M20 Nickel Brass Adaptaflex

BRAND: CABAC
SKU: B/088UNEF-M20/TC
$48.60 List price: $64.90
+ −
30 Days Return Electricians Unlock Trade Access

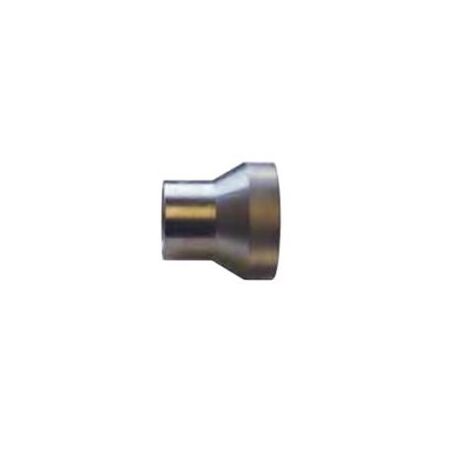

Adaptaflex thread converter features 7/8in UNEF to M20 conversion, nickel plated brass and very high UV resistance. Ideal for adapting metallic conduit fittings.

Alternatively Known As: B/088UNEF-M20/TC, B/088U-M20/TC, UNEF Thread Converter, Metallic Conduit Thread Adaptor

Technical Specifications
  • Part Number: B/088UNEF-M20/TC
  • Thread A: 7/8in-20 UNEF internal female thread
  • Thread B: M20 x 1.5 internal female thread
  • Material: Nickel-plated brass
  • Outer Diameter: 27 mm
  • Nominal Dimensions: 8.0 mm, 14.0 mm, 26.2 mm and 27.0 mm, per manufacturer dimensional data
  • Operating Temperature: Static applications from -50°C to +300°C
  • UV Resistance: Very high
  • Packaging Unit: 1 each
  • Dimensions (H x L x W): 27mm x 26.2mm x 27mm
  • Weight: 0.1 kg
Key Features
  • Converts a 7/8in UNEF thread to an M20 metric thread
  • Two internal female threads
  • Nickel-plated brass construction for metallic conduit systems
  • Designed for adapting threaded metallic conduit fittings
  • Very high UV resistance for exposed or outdoor installations
  • Compatible with threaded fittings in the Adaptaflex range
  • Suitable for static applications across a wide temperature range
Applications
  • Adapting 7/8in UNEF metallic conduit fittings to M20 threaded fittings
  • Metallic conduit and cable protection systems
  • Electrical and industrial cable management installations
  • Outdoor or exposed conduit installations
Standards & Compliance
  • Relevant conduit-system standard: AS/NZS 61386.1, General requirements
  • AS/NZS 61386.23 may apply where the converter is used as part of a flexible conduit system; product-specific Australian certification should be confirmed for the complete installed system
Environmental Benefits
  • Brass is a durable and recyclable engineering material
  • Nickel plating and high UV resistance can extend service life and reduce replacement waste
  • Suitable for long-term outdoor or exposed cable-management installations
Warranty Information

ABB Australia standard sale terms provide a 12-month warranty against defects in design, materials and workmanship, subject to the stated conditions and Australian Consumer Law rights.

Available Now

Available through ADAPTAFLEX/ABB and authorised Australian electrical and cable-management distributors.
