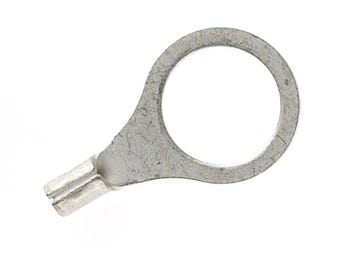

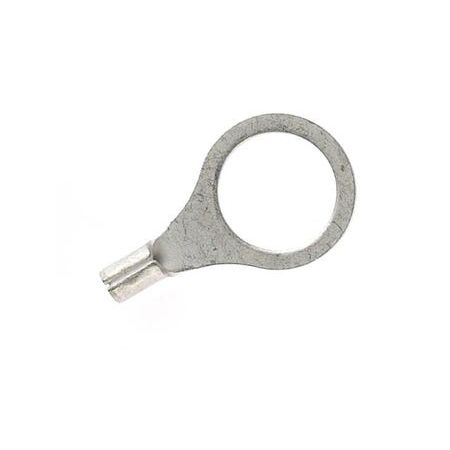

Uninsulated Ring Terminal for 0.5-1.6mm² Cable | 6mm Stud | Soldered Seam & Copper Construction | 600V by Cabac
Cabac Uninsulated Ring Terminal with 6mm stud for 0.5 to 1.6 mm² cable, featuring a soldered seam for strength and made from high-quality annealed copper with tin plating, suitable for electrical and power connectivity applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UNINSULATED RING TERMINAL (0.5-1.6MM2 CABLE) 6MM STUD
Brand: Cabac
SKU: RTU1.25-6
Alternatively Known As: Uninsulated Ring Terminal 6mm Stud, Copper Ring Terminal, Electrical Ring Connector
Technical Specifications
- Cable Size: 0.5 to 1.6 mm²
- Stud Size: 6 mm
- Material: 99.9% annealed copper, tin electroplated
- Maximum Voltage: 600V
- Maximum Operating Temperature: 150°C
- Soldered seam for added mechanical strength
- Dimensions (H x L x W): 10mm x 20mm x 6mm
- Weight: 0.01 kg
Key Features
- Soldered seam for added strength
- Made from 99.9% annealed copper, tin electroplated
- High quality product meeting international standards
- Max voltage rating of 600V
- Max operating temperature of 150 degrees Celsius
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and safety compliance.
Applications
- Electrical wiring connections in automotive, industrial, and household electrical systems
- Suitable for use in power connectivity and terminal connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable copper construction reduces need for frequent replacements
- Tin electroplating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Uninsulated Ring Terminal 0.5-1.6mm² Cable 6mm Stud is available for immediate purchase, ideal for electrical wiring and power connectivity applications.
