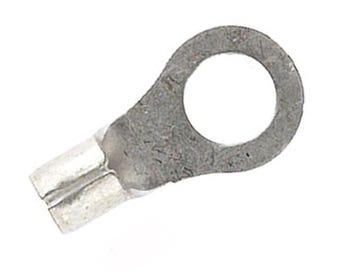

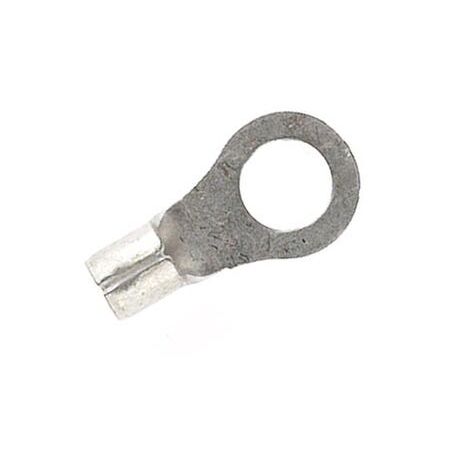

Uninsulated Ring Terminal for 0.5-1.6mm² Cables | 3mm Stud | Soldered Seam & Tin Electroplated Copper by Cabac

BRAND: CABAC
SKU: RTU1.25-3
$22.60 List price: $27.40
+ −
30 Days Return Delivery Options
Cabac Uninsulated Ring Terminal with 3MM stud designed for 0.5-1.6mm² cables, featuring a soldered seam for strength and tin electroplated copper construction for durability and high performance.

Product Name/Title: UNINSULATED RING TERMINAL (0.5-1.6MM2 CABLE) 3MM STUD

Brand: Cabac

SKU: RTU1.25-3

Alternatively Known As: Uninsulated Ring Terminal 3mm Stud, Copper Ring Terminal, Electrical Ring Connector

Technical Specifications
  • Cable Size: 0.5-1.6mm²
  • Stud Size: 3mm
  • Material: 99.9% annealed copper, tin electroplated
  • Maximum Voltage: 600V
  • Maximum Operating Temperature: 150°C
  • Connection Type: Soldered seam for added strength
  • Dimensions (H x L x W): 5mm x 20mm x 10mm
  • Weight: 0.01 kg
Key Features
  • Soldered seam for added strength
  • 99.9% annealed copper, tin electroplated for corrosion resistance
  • High quality product meeting international standards
  • Max voltage rating of 600V
  • Max operating temperature of 150 degrees Celsius
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
  • Electrical wiring connections in automotive, industrial, and household electrical systems
  • Suitable for use in power connectivity and terminal connections
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Made from recyclable copper material
  • Durable construction reduces need for frequent replacements
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

The Cabac Uninsulated Ring Terminal 3MM Stud is available for immediate purchase, ideal for electrical wiring and connectivity applications.
