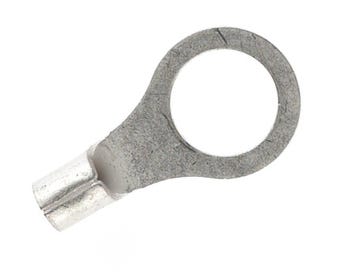

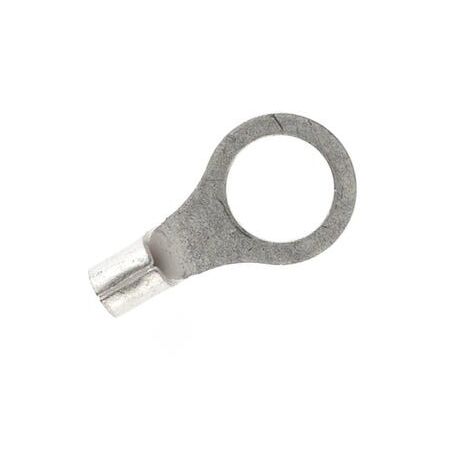

Uninsulated Ring Terminal for 0.5-1.6mm² Cables | 4mm Stud | Soldered Seam & Tin Plated Copper | 600V Max by Cabac

BRAND: CABAC
SKU: RTU1.25-4
$22.60 List price: $27.40
+ −
30 Days Return Delivery Options
The Cabac Uninsulated Ring Terminal with a 4MM stud is designed for 0.5-1.6mm² cables, offering strong, reliable electrical connections with high-quality copper construction and tin plating.

Product Name/Title: UNINSULATED RING TERMINAL (0.5-1.6MM2 CABLE) 4MM STUD

Brand: Cabac

SKU: RTU1.25-4

Alternatively Known As: Uninsulated Ring Terminal 4mm, Copper Ring Terminal, Electrical Ring Connector, Tin Plated Ring Terminal

Technical Specifications
  • Cable Size: 0.5-1.6mm²
  • Stud Size: 4mm
  • Material: 99.9% annealed copper, tin electroplated
  • Max Voltage: 600V
  • Max Operating Temperature: 150°C
  • Connection Type: Uninsulated ring terminal with soldered seam
  • Dimensions (H x L x W): 5mm x 20mm x 10mm
  • Weight: 0.01 kg
Key Features
  • Soldered seam for added strength
  • Made from 99.9% annealed copper, tin electroplated
  • High quality product meeting international standards
  • Max voltage rating of 600V
  • Max operating temperature of 150 degrees Celsius
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure safe and compliant electrical connections.
Applications
  • Electrical & Power Connectivity
  • Terminals for electrical wiring connections
  • Suitable for use in automotive, industrial, and household electrical systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable copper construction reduces need for frequent replacements
  • Tin plating enhances corrosion resistance, extending product life
Warranty Information

Warranty against manufacturing defects as per Cabac standard policy.

Available Now

The Cabac Uninsulated Ring Terminal 4MM Stud is available for immediate purchase, ideal for electrical wiring and connectivity applications.
