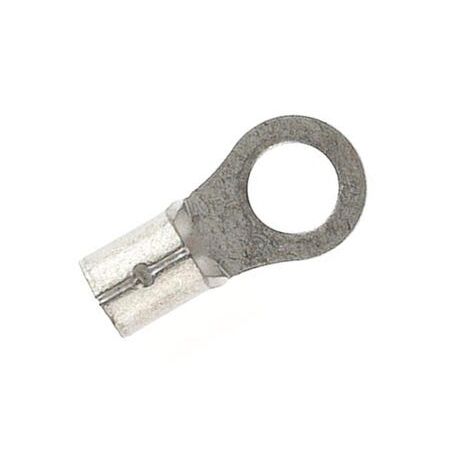

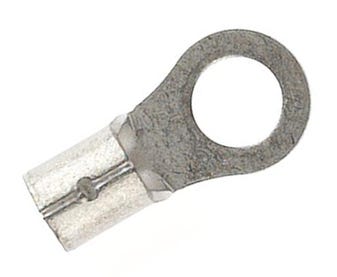

Uninsulated Ring Terminal for 0.5-1.6mm² Cables | 5mm Stud | Soldered Seam & Tin Electroplated Copper by Cabac

BRAND: CABAC
SKU: RTU1.25-5
$22.60 List price: $27.40
+ −
30 Days Return Delivery Options
Cabac Uninsulated Ring Terminal with 5MM stud designed for 0.5-1.6mm² cables, featuring a soldered seam for strength and tin electroplated copper construction for durability and high performance.

Product Name/Title: UNINSULATED RING TERMINAL (0.5-1.6MM2 CABLE) 5MM STUD

Brand: Cabac

SKU: RTU1.25-5

Alternatively Known As: Uninsulated Ring Terminal 5mm, Copper Ring Terminal, Electrical Ring Connector

Technical Specifications
  • Cable Size: 0.5-1.6mm²
  • Stud Size: 5mm
  • Material: 99.9% annealed copper, tin electroplated
  • Max Voltage: 600V
  • Max Operating Temperature: 150°C
  • Connection Type: Uninsulated ring terminal with soldered seam
  • Dimensions (H x L x W): 5mm x 20mm x 10mm
  • Weight: 0.01 kg
Key Features
  • Soldered seam for added strength
  • 99.9% annealed copper, tin electroplated
  • High quality product meeting international standards
  • Max voltage: 600V
  • Max operating temperature: 150°C
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure proper connection and safety.
Applications
  • Electrical & Power Connectivity
  • Terminals for electrical wiring connections
  • Suitable for use in automotive, industrial, and household electrical systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Made from recyclable copper material
  • Durable construction reduces need for frequent replacements
Warranty Information

Standard manufacturer warranty against defects.

Available Now

The Cabac Uninsulated Ring Terminal 5MM Stud is available for immediate purchase, ideal for electrical wiring and connectivity applications.
