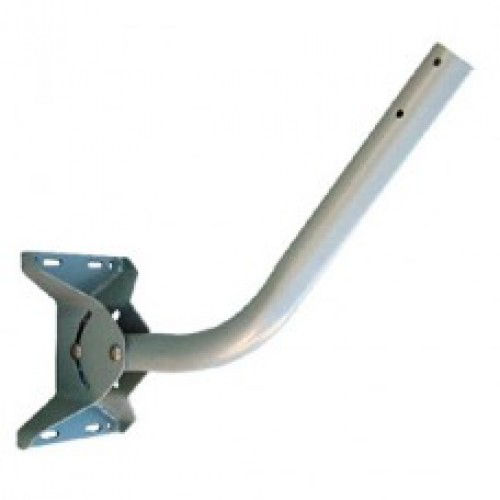

Universal Antenna Mount 630mm 90 Degree Tilt Galvanised Ness
Ness universal antenna mount features a 630mm length, 90 Degree tilt and heavy-duty galvanised steel. Ideal for mounting wireless antennas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Universal Antenna Bracket, Wireless Antenna Mount, Galvanised Antenna Mount, Laird UML Universal Mount
Technical Specifications
- Mounting Type: Universal wall, roof, under-eave or pole mount
- Tube Length: 630mm
- Tube Diameter: Approximately 38–40mm
- Tilt Adjustment: Full 90 degrees
- Material: Heavy-duty galvanised steel
- Finish: Galvanised steel with powder-coated paint
- Mounting Flexibility: Two sets of pipe mounting holes
- Pole Compatibility: Accepts standard UM-UB/PAW U-bolt kit
- Load Capacity: Up to 150lb in both axes, according to the corresponding UML manufacturer datasheet
- Dimensions (H x L x W): 381mm x 630mm x 152mm
- Weight: 2.2 kg
Key Features
- Suitable for wireless antennas and customer premises equipment
- Full 90-degree tilt adjustment for installation flexibility
- Heavy-duty galvanised steel construction for outdoor use
- 630mm extra-long mounting tube
- Two sets of mounting holes for angular adjustment
- Suitable for wall, roof, under-eave and pole mounting
- Powder-coated finish provides additional environmental protection
Professional Installation Requirements
- Installation should be carried out by a competent antenna or communications installer. Confirm the supporting structure, fixings, wind loading and weather sealing are suitable for the antenna and installation location.
Applications
- Wireless antenna mounting
- Customer premises equipment installation
- Roof and wall-mounted communications equipment
- Under-eave antenna mounting
- Pole-mounted wireless networking equipment
- Indoor or outdoor standoff mounting
Standards & Compliance
- AS/NZS 1170.2 may apply to site-specific wind loading and structural assessment; no product certification to this standard was identified for this mount.
Environmental Benefits
- Galvanised steel provides corrosion resistance and can extend service life in outdoor installations
- Steel is recyclable at end of service life
- Durable construction can reduce replacement frequency and associated material waste
- Powder-coated and galvanised finishes provide additional protection against weather-related deterioration
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness Corporation terms and conditions.
Available Now
Special order product; availability should be confirmed with a Ness branch or authorised Australian distributor.
