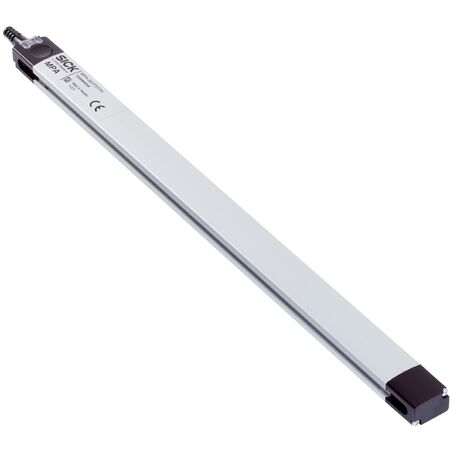

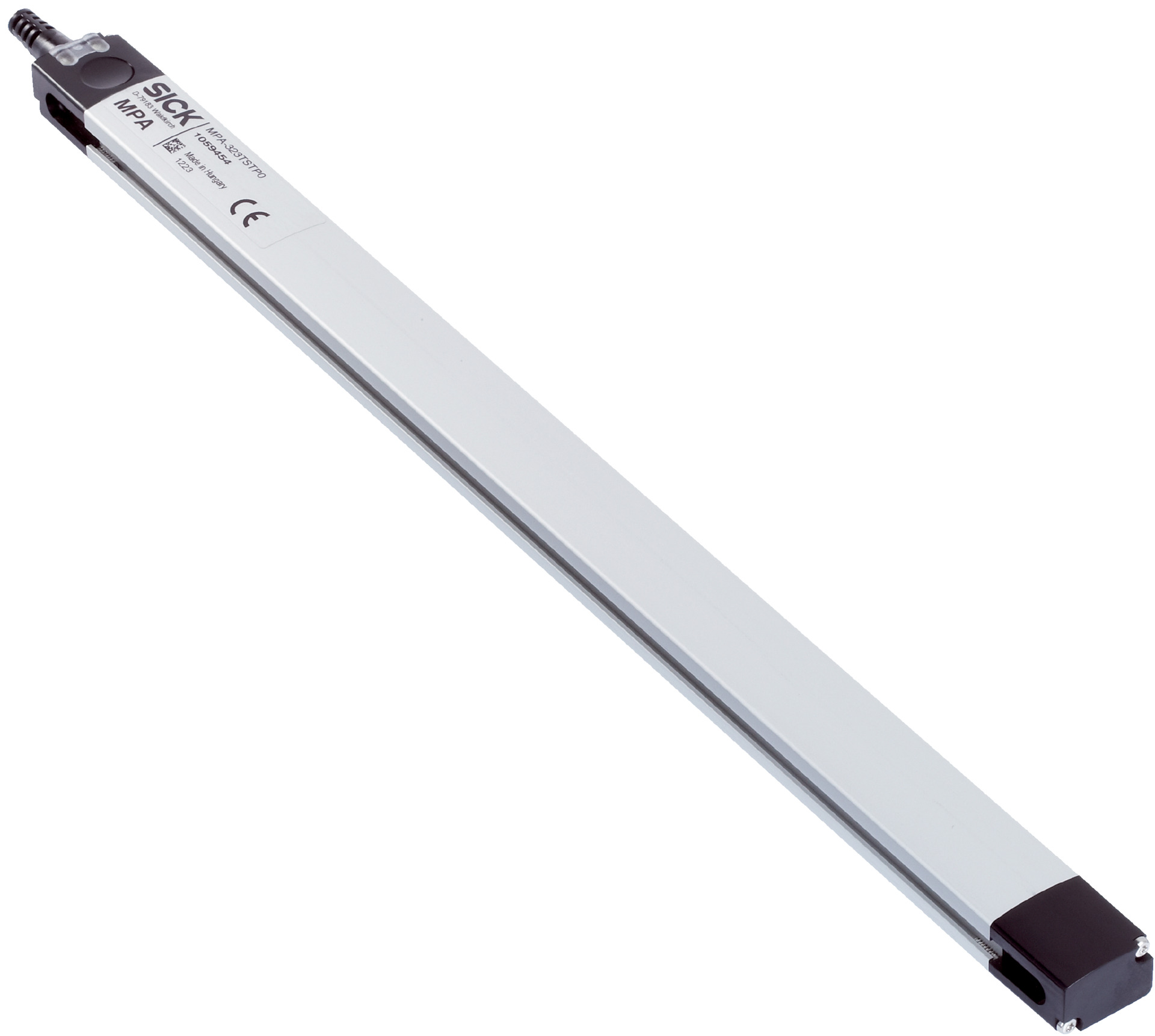

Universal Cylinder Position Sensor | 179 mm Measuring Range | IO-Link & Analog Output | IP65/IP67/IP68 Rated | by SICK
The Universal Cylinder Position Sensor is designed for precise position sensing in industrial automation, featuring a 179 mm measuring range and both IO-Link and analog output options. With robust IP65/IP67/IP68 ratings, it ensures reliable performance in harsh environments, making it ideal for pneumatic and hydraulic cylinder systems in manufacturing and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: 35 mA without load
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Resolution: 0.03% FSR (max. ≥ 0.06 mm)
- Linearity error: 0.5 mm
- Repeat accuracy: 0.06% FSR (≥ 0.1 mm)
- Sampling rate: 1.15 ms
- Protection class: III
- Connection: Cable with M8 male connector, 4-pin, 0.3 m length
- Material: Metal aluminum housing, PUR cable
- EMC compliant according to EN 60947-5-2
- Communication interface: IO-Link V1.0.1, COM2, cycle time 2.3 ms
- Dimensions (H x L x W): 30mm x 181mm x 30mm
- Weight: 0.3 kg
Key Features
- Universal cylinder compatibility including round body, tie rod, T-slot, Festo, DSBC, SMC, CP96 cylinders
- Measuring range of 179 mm
- Analog and IO-Link output options (0-10 V voltage, 4-20 mA current)
- IP65, IP67, and IP68 enclosure ratings for robust protection
- Teach-in control panel for easy adjustment and resetting
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for position sensing of universal cylinders
- Measurement and control in pneumatic and hydraulic cylinder systems
- Integration in manufacturing and process control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (35 mA without load)
- Durable design reduces waste and replacement frequency
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MPA-179THTP0 Universal Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and control applications requiring precise cylinder position measurement.
