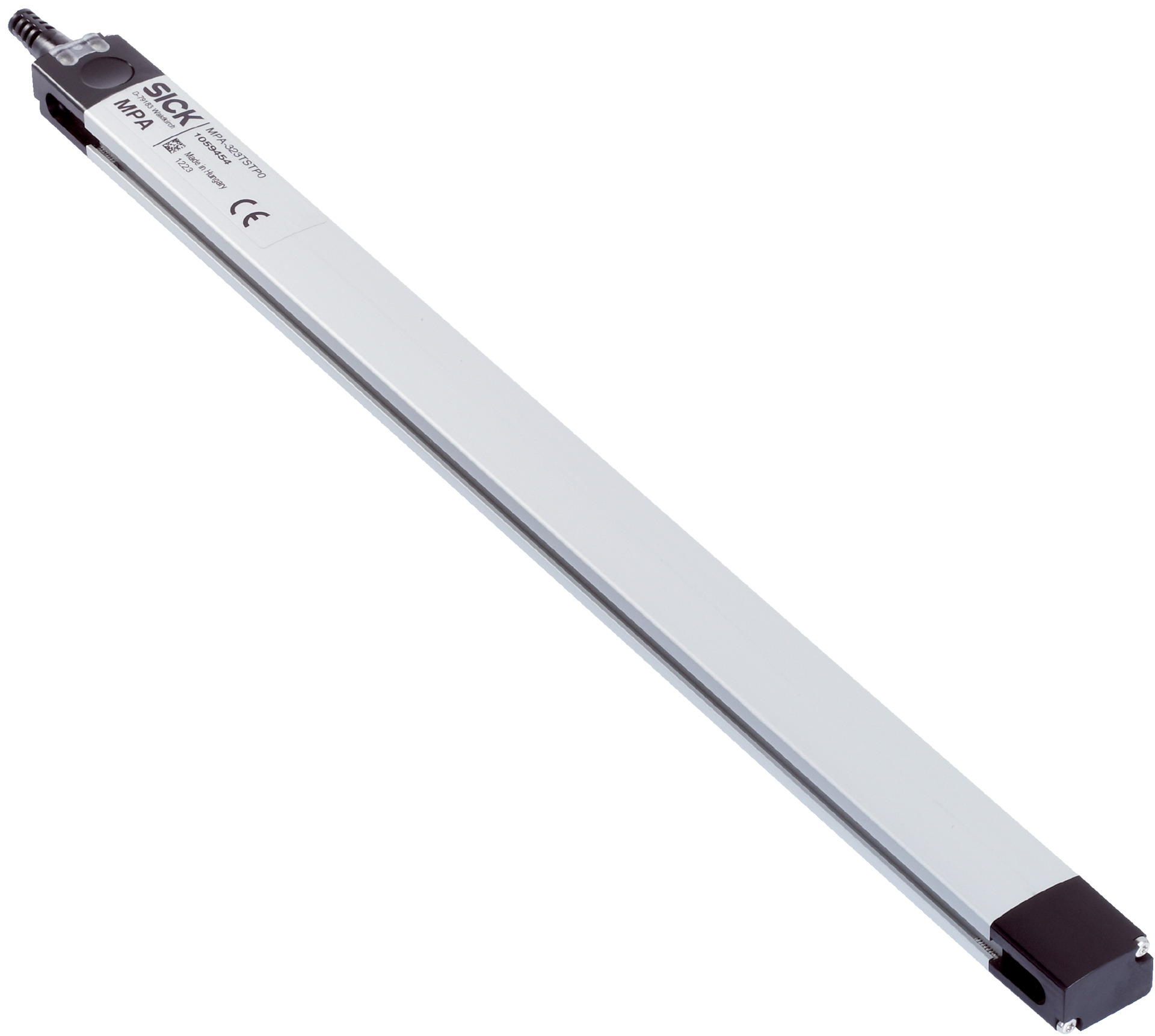

Universal Cylinder Position Sensor | 323 mm Measuring Range | Analog & IO-Link Output | IP65/IP67/IP68 Rated | by SICK
The Universal Cylinder Position Sensor is designed for precise cylinder position measurement in industrial automation. With a measuring range of 323 mm, it features both analog and IO-Link output options, making it versatile for various applications. Built to withstand harsh environments, it boasts IP65, IP67, and IP68 ratings, ensuring reliability in process control and monitoring tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 325mm x 30mm
- Weight: 0.5 kg
Key Features
- Universal cylinder type compatibility with various adapters
- Measuring range of 323 mm
- Analog and IO-Link output options
- DC 4-wire electrical wiring
- IP65, IP67, and IP68 enclosure ratings for harsh environments
- Teach-in control panel for easy adjustment and configuration
- High resolution of 0.03% FSR and repeat accuracy of 0.06% FSR
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Wide ambient operating temperature range from -20°C to +70°C
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and configuration.
Applications
- Industrial automation for cylinder position measurement
- Use with round body, tie rod, T-slot, Festo, DSBC, SMC cylinders
- Process control and monitoring in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP-rated housing reduces environmental damage and waste
- Low power consumption of 35 mA without load
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

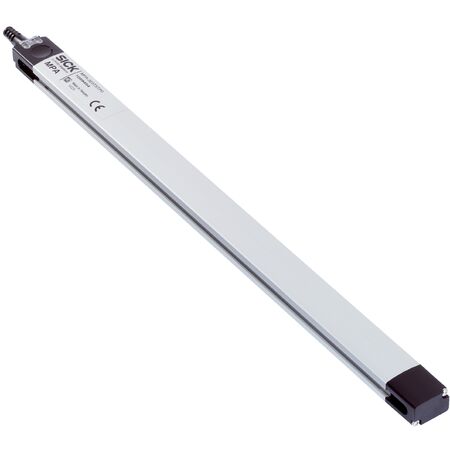

The SICK MPA-323THTU0 Universal Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and process control applications.
