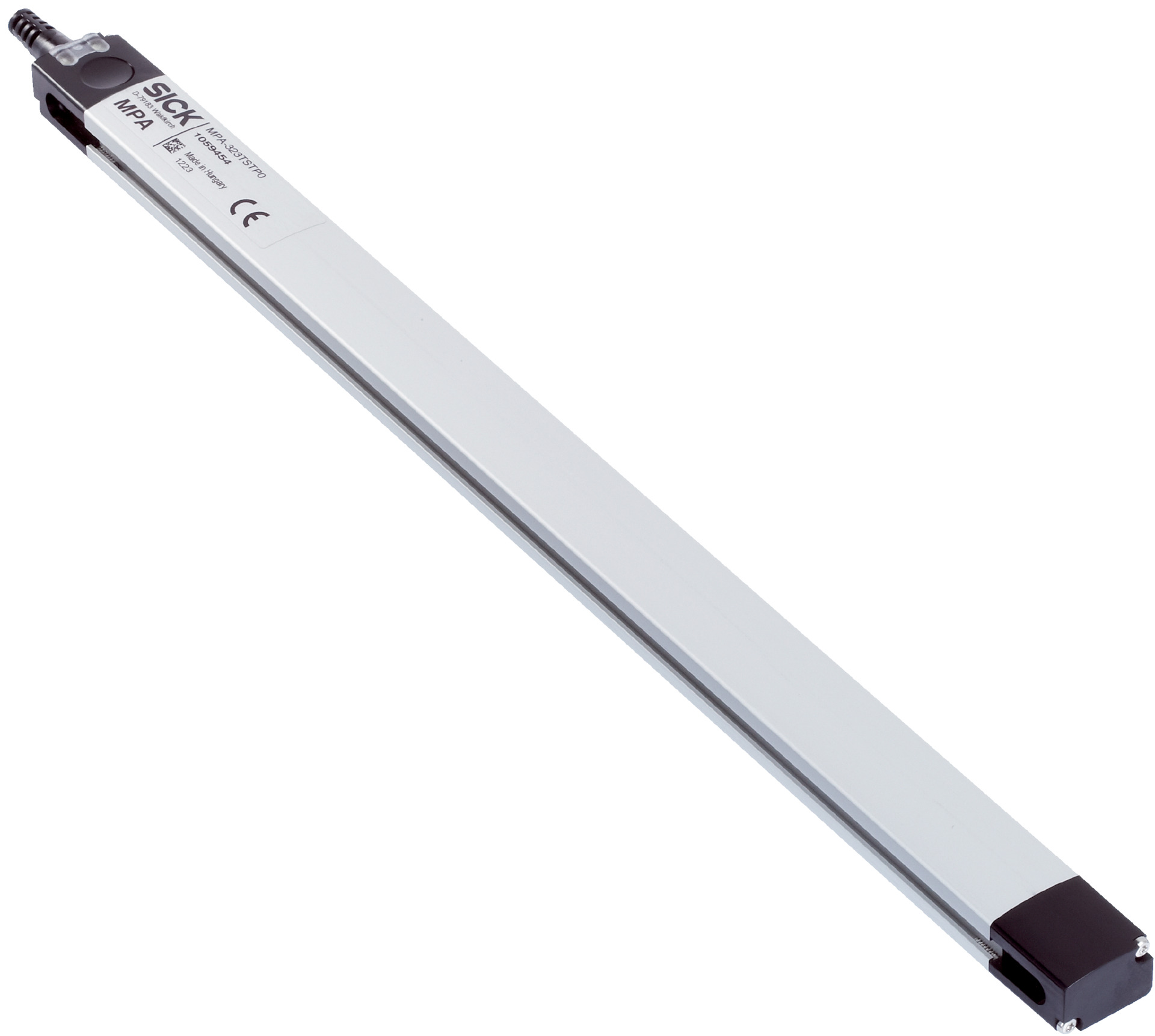

Universal Cylinder Position Sensor | 359 mm Measuring Range | Analog & IO-Link Output | IP65/IP67/IP68 Rated | by SICK
The Universal Cylinder Position Sensor is designed for precise cylinder position measurement in industrial automation, featuring a 359 mm measuring range and both analog and IO-Link output options. With a robust IP65/IP67/IP68 protection rating, it's perfect for harsh environments, ensuring reliable performance and durability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 359 mm
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: 35 mA without load
- Output function: Analog (0-10 V, 4-20 mA) and IO-Link V1.0.1
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Resolution: 0.03% FSR (max. ≥ 0.06 mm)
- Linearity error: 0.5 mm
- Repeat accuracy: 0.06% FSR (≥ 0.1 mm)
- Sampling rate: 1.15 ms
- Protection class: III
- Enclosure rating: IP65, IP67, IP68
- Connection: Cable with M8 male connector, 4-pin, 0.3 m
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- EMC: According to EN 60947-5-2
- Status indicator LED included
- Reverse polarity and short-circuit protection
- Dimensions (H x L x W): 40mm x 361mm x 40mm
- Weight: 1.2 kg
Key Features
- Universal cylinder type compatibility with various adapters
- Measuring range of 359 mm
- Analog and IO-Link output options
- DC 4-wire electrical wiring
- High protection rating: IP65, IP67, IP68
- Teach-in control panel for easy adjustment and resetting
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms)
- Wide ambient operating temperature from -20 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for cylinder position measurement
- Use with round body, tie rod, T-slot, Festo, DSBC, SMC cylinders
- Suitable for harsh environments requiring IP65 to IP68 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (35 mA)
- Durable design reduces waste and replacement frequency
- Compliant with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

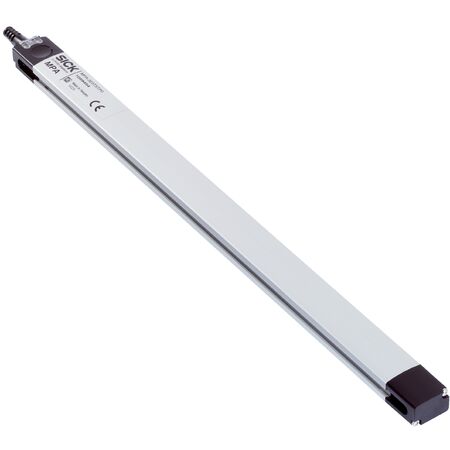

The SICK MPA-359THTP0 Universal Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
