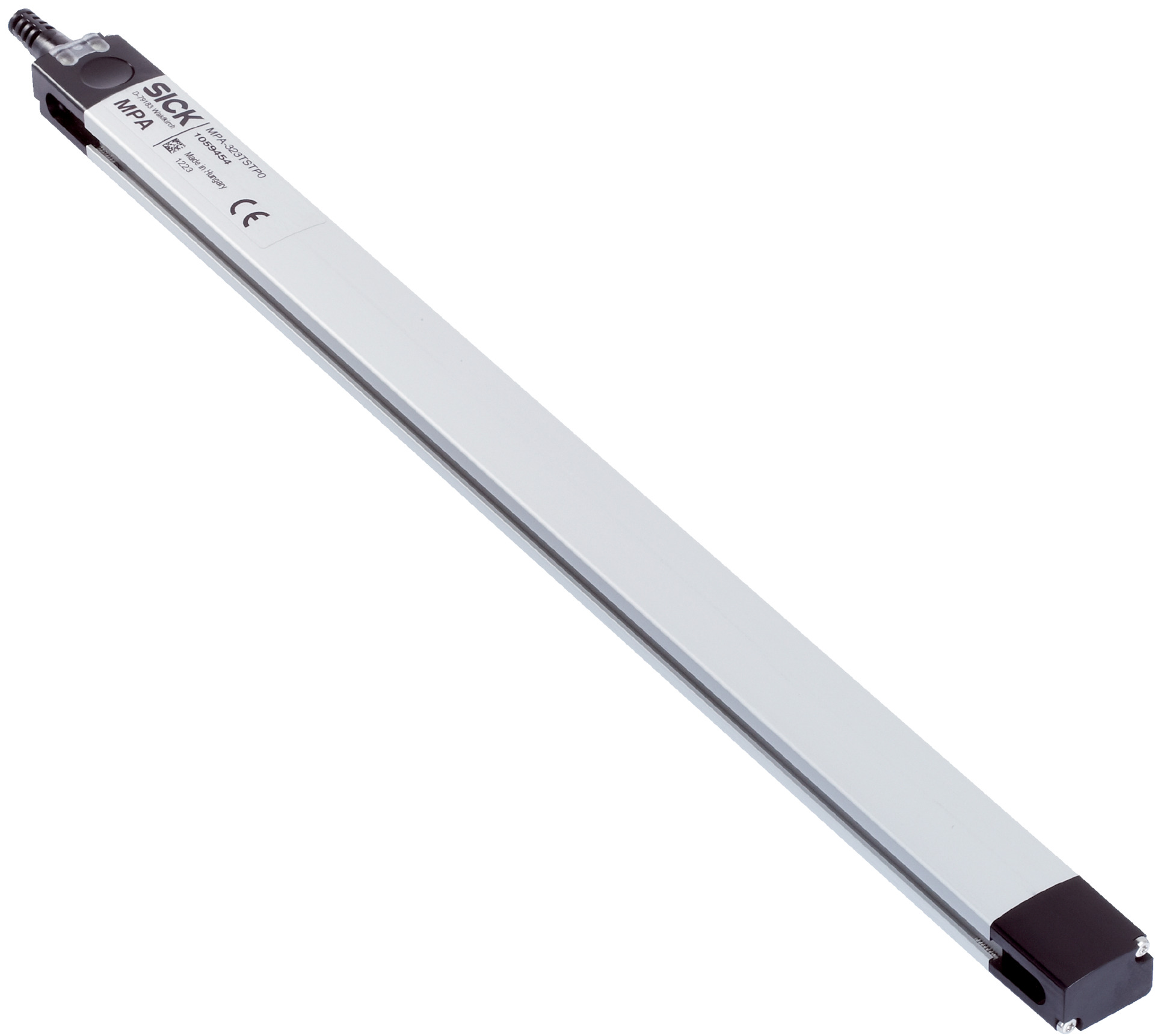

Universal Cylinder Position Sensor | 467 mm Measuring Range | Analog & IO-Link Output | IP65/IP67/IP68 Rated | by SICK
The Universal Cylinder Position Sensor is designed for precise cylinder position measurement in industrial automation, featuring a 467 mm measuring range and both analog and IO-Link output options. Built for harsh environments, it offers robust IP65 to IP68 protection, making it ideal for various cylinder types including round body and tie rod cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 467 mm
- Output function: Analog (0 V to 10 V, 4 mA to 20 mA) and IO-Link
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: 35 mA without load
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Resolution: 0.03% FSR (max. ≥ 0.06 mm)
- Linearity error: 0.5 mm
- Repeat accuracy: 0.06% FSR (≥ 0.1 mm)
- Sampling rate: 1.15 ms
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Connection: Cable with M8 male connector, 4-pin, 0.3 m
- Housing material: Metal, Aluminum
- Cable material: PUR
- EMC: According to EN 60947-5-2
- Communication interface: IO-Link V1.0.1, COM2, cycle time 2.3 ms
- Dimensions (H x L x W): 30mm x 469mm x 30mm
- Weight: 1.2 kg
Key Features
- Universal cylinder type compatibility with various adapters
- Measuring range of 467 mm
- Analog and IO-Link output options
- DC 4-wire electrical wiring
- IP65, IP67, and IP68 enclosure ratings for robust protection
- Teach-in control panel for easy adjustment and configuration
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms)
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for cylinder position measurement
- Use with round body, tie rod, T-slot, Festo, DSBC, SMC cylinders
- Suitable for harsh environments requiring IP65 to IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (35 mA without load)
- Durable design reduces waste and replacement frequency
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPA-467THTP0 Universal Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
