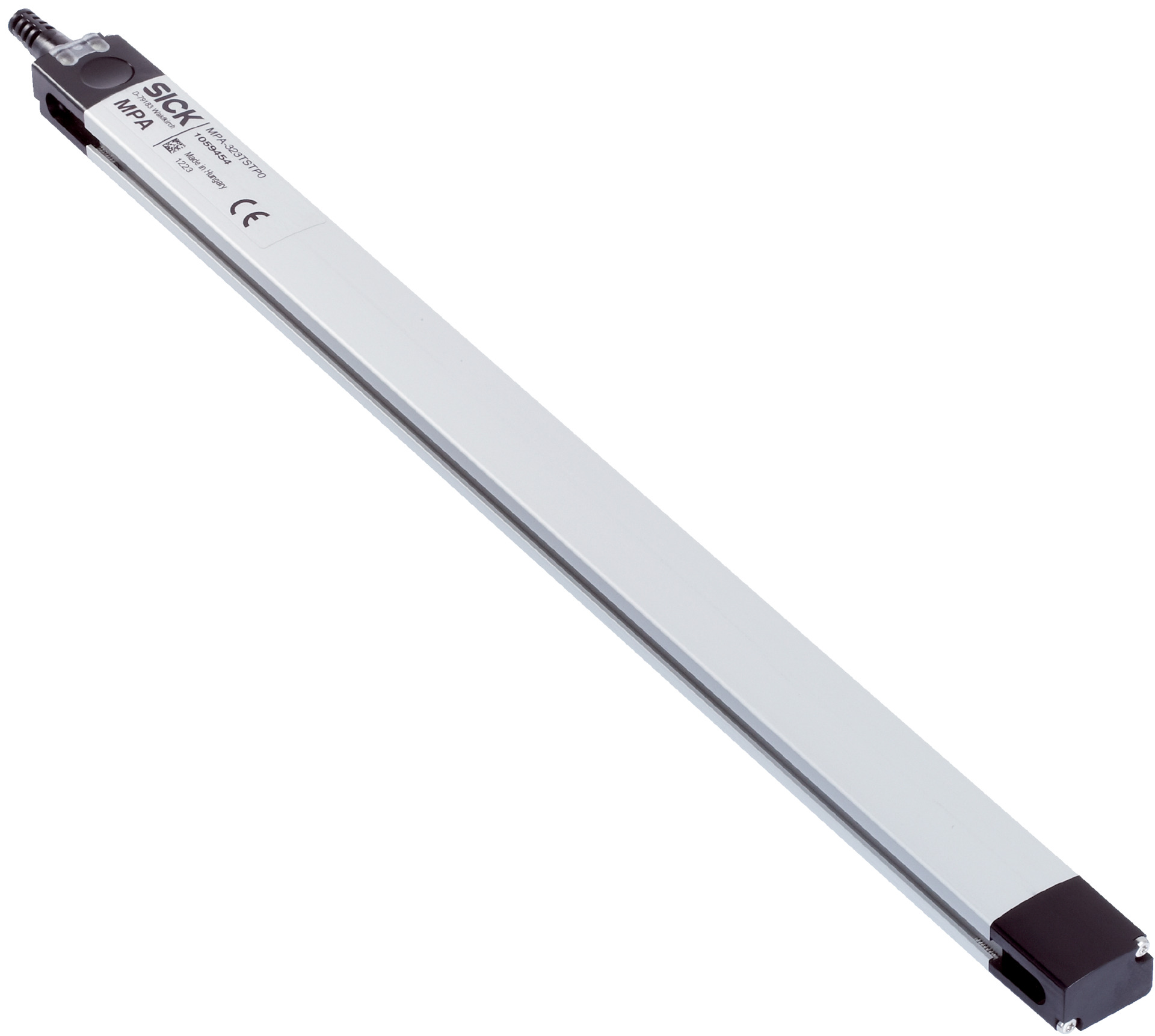

Universal Cylinder Position Sensor | 503 mm Measuring Range | IP65/IP67/IP68 Rated | by SICK
The Universal Cylinder Position Sensor is designed for precise cylinder position measurement in industrial automation. With a measuring range of 503 mm and compatibility with various cylinder types, it features analog and IO-Link outputs for versatile applications. Built to withstand harsh environments, this sensor offers robust IP65 to IP68 protection, ensuring reliability and longevity in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 505mm x 30mm
- Weight: 1.2 kg
Key Features
- Universal cylinder type compatibility with various adapters
- Measuring range of 503 mm with analog and IO-Link output
- Electrical wiring: DC 4-wire with 4 mA to 20 mA analog output
- Enclosure rating IP65, IP67, and IP68 for robust protection
- Supply voltage from 15 V DC to 30 V DC with low power consumption
- High resolution of 0.03% FSR and repeat accuracy of 0.06% FSR
- Reverse polarity and short-circuit protection included
- Status indicator LED and teach-in functionality
- Shock and vibration resistant up to 30 g and EMC compliant
- Cable with M8 male connector, 4-pin, 0.3 m length
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for cylinder position measurement
- Use with round body, tie rod, T-slot, Festo, DSBC, SMC cylinders
- Suitable for harsh environments requiring IP65 to IP68 protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption minimizes energy usage
- Robust protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

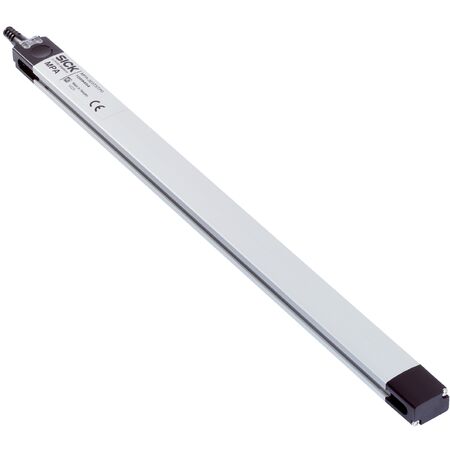

The SICK MPA-503THNP0 Universal Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position measurement applications.
