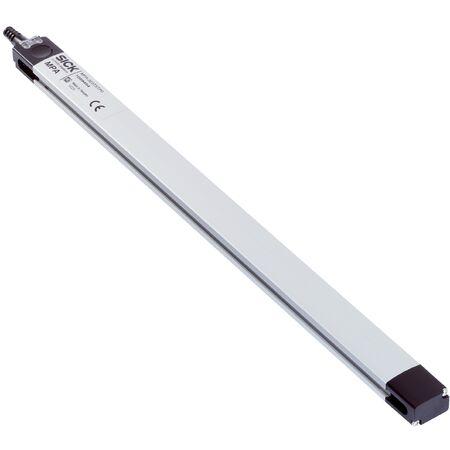

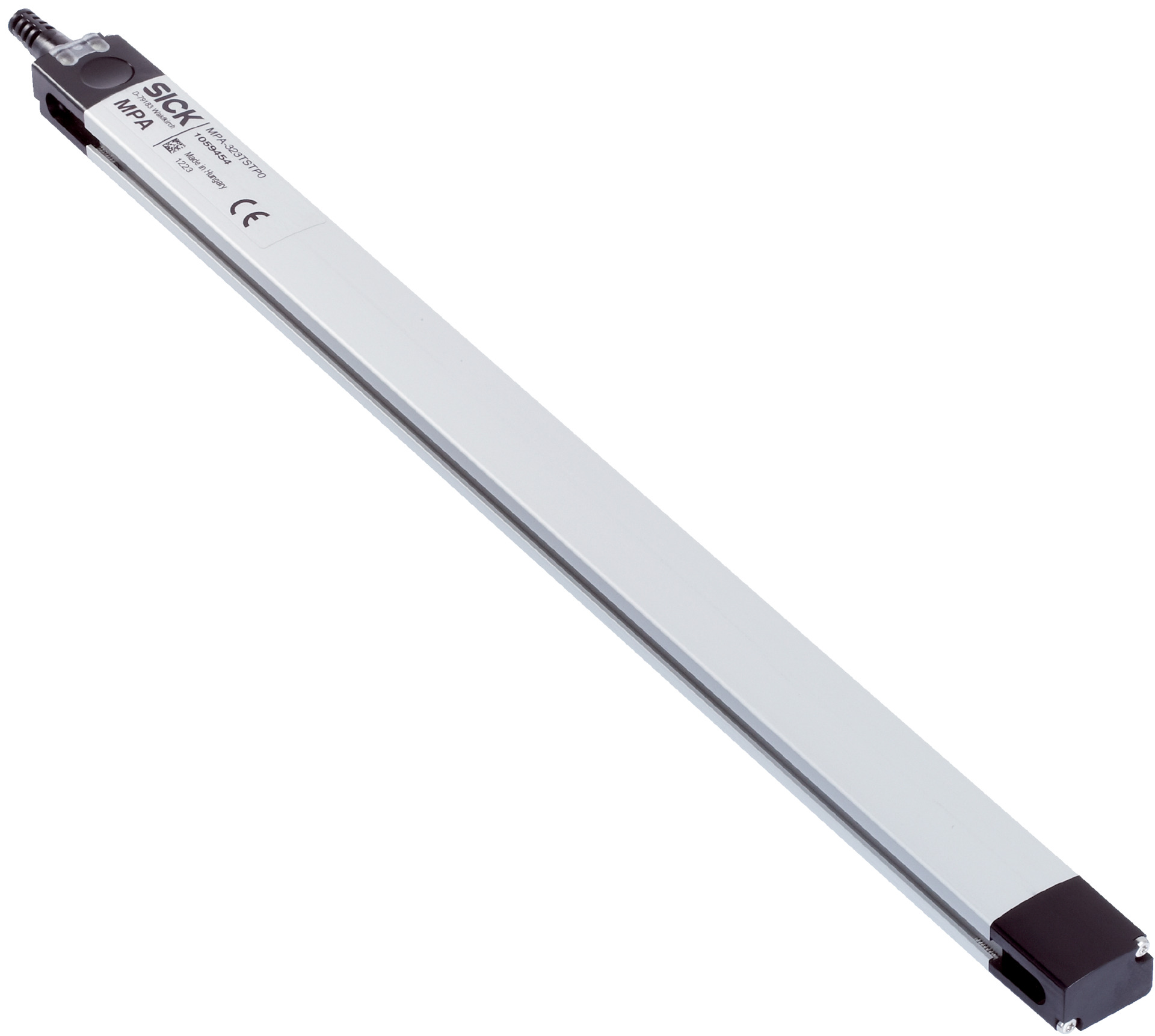

Universal Cylinder Position Sensor | 791 mm Measuring Range | IP65/IP67/IP68 Rated | by SICK
The Universal Cylinder Position Sensor is designed for precise cylinder position measurement in industrial automation. With a measuring range of 791 mm and robust IP65 to IP68 ratings, it’s perfect for harsh environments. Featuring analog and IO-Link output options, this sensor ensures high resolution and repeat accuracy, making it ideal for various cylinder types including round body and tie rod cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 793mm x 30mm
- Weight: 1.2 kg
Key Features
- Universal cylinder type compatibility with various adapters
- Measuring range of 791 mm with analog and IO-Link output options
- Robust housing with IP65, IP67, and IP68 enclosure ratings
- DC 4-wire electrical wiring with 0-10 V voltage and 4-20 mA current analog outputs
- Teach-in control panel for easy adjustment and resetting
- High resolution of 0.03% FSR and repeat accuracy of 0.06% FSR
- Reverse polarity and short-circuit protection with LED status indicator
- Wide ambient operating temperature from -20°C to +70°C
- Shock and vibration resistant up to 30 g and EMC compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and configuration.
Applications
- Industrial automation for cylinder position measurement
- Use with round body, tie rod, T-slot, Festo, DSBC, SMC cylinders
- Suitable for harsh environments requiring IP65 to IP68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Complies with China-RoHS for hazardous substance reduction
- Long service life reduces waste and replacement frequency
- Energy efficient with low power consumption of 35 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK MPA-791THTP0 Universal Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and precise cylinder position measurement applications.
