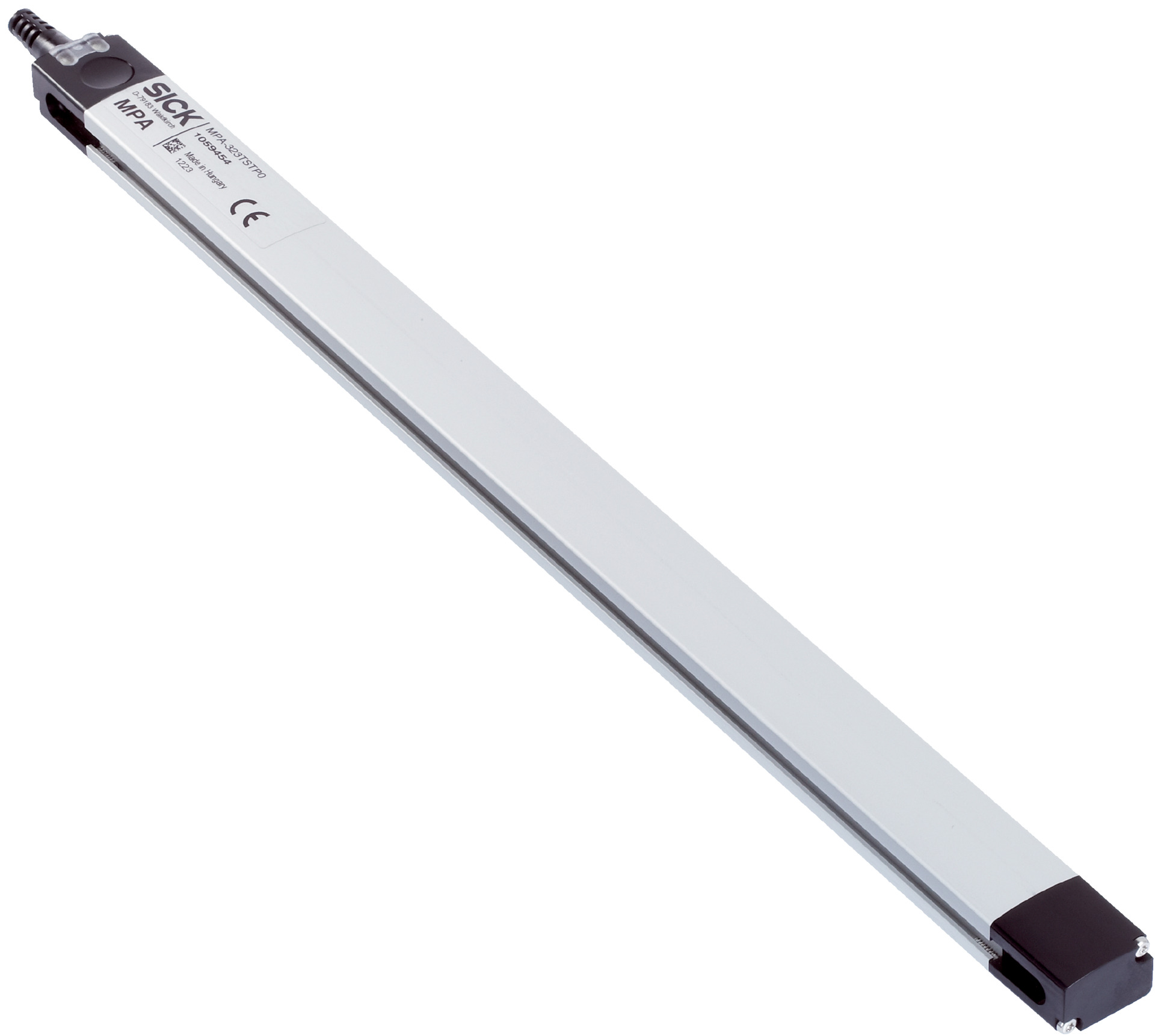

Universal Cylinder Position Sensor | 827 mm Measuring Range | IP65/IP67/IP68 Rated | by SICK
The Universal Cylinder Position Sensor is designed for precise cylinder position measurement in industrial automation. With a measuring range of 827 mm and robust IP65 to IP68 protection, it’s perfect for harsh environments. This sensor features analog and IO-Link output options, ensuring compatibility with various cylinder types, making it an ideal choice for reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 829mm x 30mm
- Weight: 1.2 kg
Key Features
- Universal cylinder type compatibility with multiple cylinder adapters
- Measuring range of 827 mm with analog and IO-Link output options
- Robust housing with IP65, IP67, and IP68 enclosure ratings
- Supply voltage range from 15 V DC to 30 V DC with low power consumption
- High resolution of 0.03% FSR and repeat accuracy of 0.06% FSR
- Reverse polarity and short-circuit protection included
- Status indicator LED and teach-in functionality for easy setup
- Shock and vibration resistant up to 30 g and EMC compliant to EN 60947-5-2
- Communication via IO-Link V1.0.1 with 2.3 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for cylinder position measurement
- Use with round body, tie rod, T-slot, Festo, DSBC, SMC cylinders
- Suitable for harsh environments requiring IP65 to IP68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption of 35 mA reduces energy usage
- Durable materials and high protection rating extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

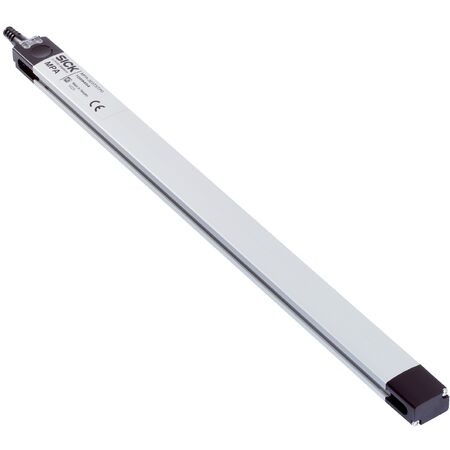

The SICK MPA-827THTP0 Universal Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
