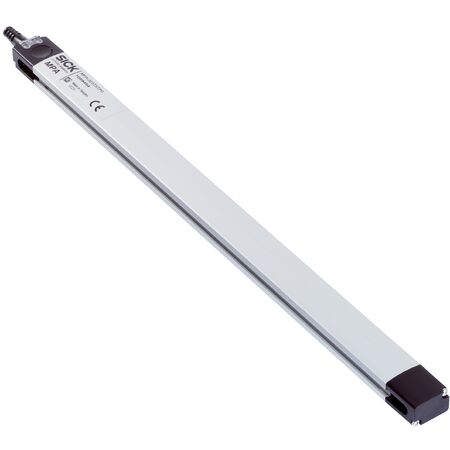

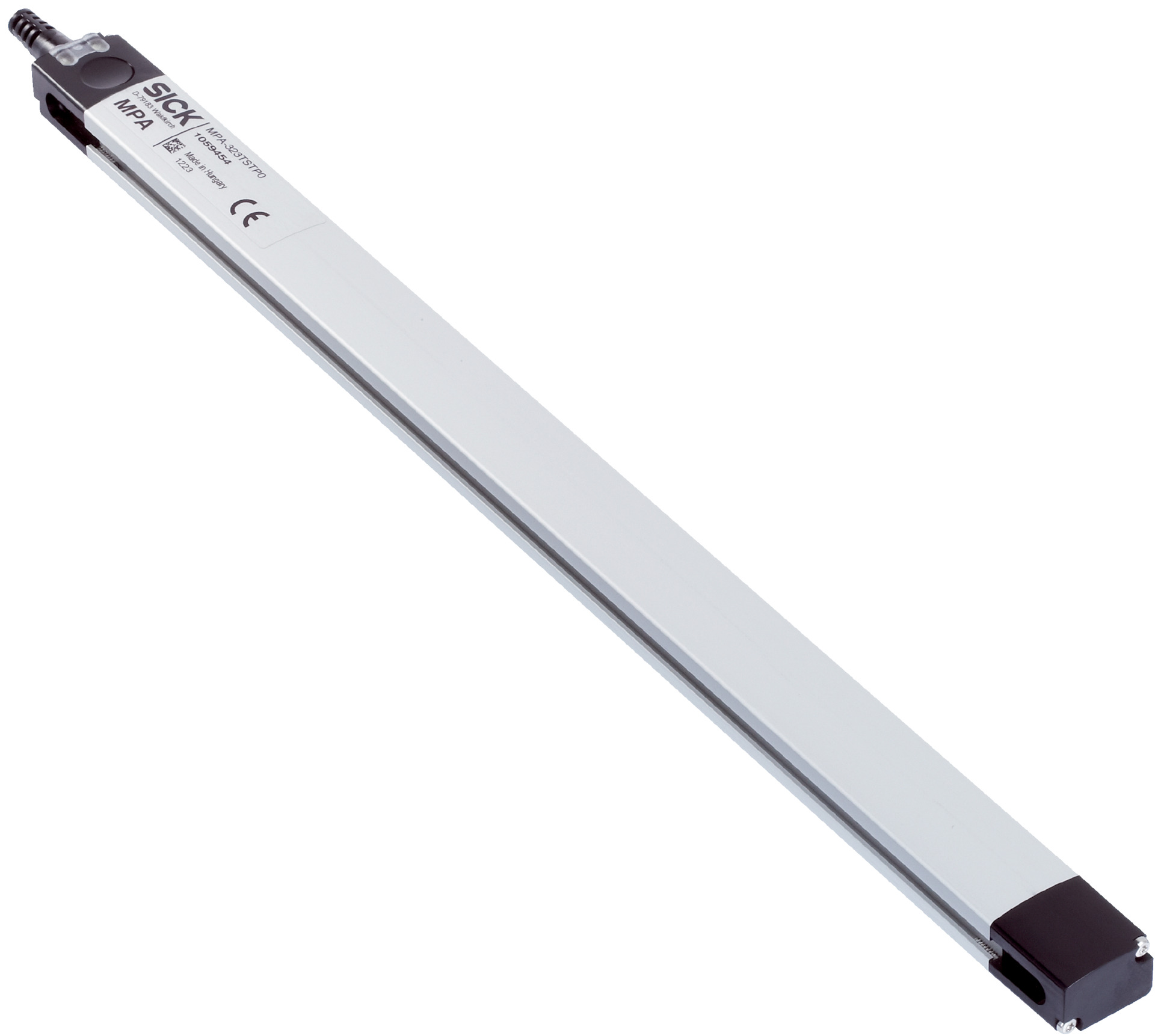

Universal Cylinder Position Sensor | 899 mm Measuring Range | IP65/IP67/IP68 Rated | by SICK
The Universal Cylinder Position Sensor is designed for precise cylinder position measurement in industrial automation. With a measuring range of 899 mm and compatibility with various cylinder types, it features robust IP65 to IP68 protection, making it ideal for harsh environments. The sensor offers analog output options and an IO-Link communication interface, ensuring reliable performance and easy integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 901mm x 30mm
- Weight: 1.2 kg
Key Features
- Universal cylinder type compatibility including various cylinder brands and types
- Measuring range of 899 mm with housing length of 901 mm
- Analog output options: 0 V to 10 V voltage and 4 mA to 20 mA current
- IO-Link communication interface with standard functions and COM2 detail
- Robust electrical wiring with DC 4-wire connection and M8 4-pin connector
- High protection rating: IP65, IP67, and IP68
- Reverse polarity and short-circuit protection included
- Status indicator LED and teach-in functionality for easy setup
- Operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- EMC compliant according to EN 60947-5-2
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and configuration using teach-in control panel.
Applications
- Industrial automation for cylinder position measurement
- Use with round body, tie rod, T-slot, Festo, DSBC, SMC cylinders
- Suitable for harsh environments requiring IP65 to IP68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 35 mA without load
- Compliant with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK MPA-899THTP0 Universal Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position measurement applications.
