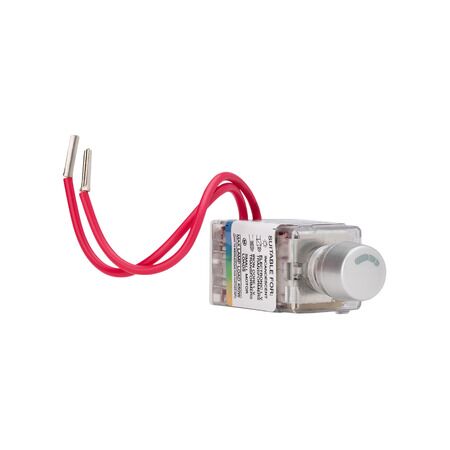

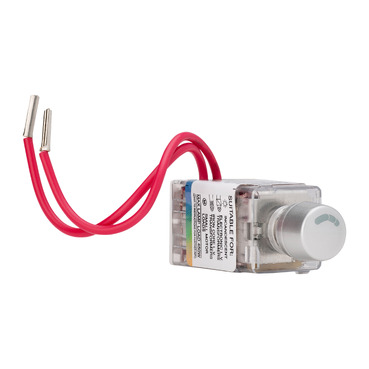

Universal Dimmer Mechanism 450W | Compatible with LED & CFL | Push Button Control | by Clipsal
The Universal Dimmer Mechanism 450W is designed for versatile lighting control, compatible with LED, CFL, incandescent, and halogen bulbs. Ideal for both residential and commercial applications, it features a push button for easy on/off and dimming, along with over-temperature and short-circuit protection. Enjoy energy savings and extended lamp life with its soft start operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Universal Dimmer Mechanism 450W | Compatible with LED & CFL | Push Button Control | by Clipsal
Brand: Clipsal
SKU: CLI4062E450UDMTR
Alternatively Known As: Clipsal Saturn Dimmer, Universal Dimmer Mechanism, 450W Dimmer, CLI4062E450UDMTR, Clipsal LED Dimmer, Saturn Series Dimmer
Technical Specifications
- Input Voltage: 220-240V AC 50Hz
- Load Capacity: 450W max (incandescent/halogen), 400VA max (electronic transformer), 400W max (CFL/LED)
- Dimming Type: Universal (Trailing and Leading Edge)
- Control: Push button for on/off and dimming
- Protection: Over-temperature and short-circuit
- Compatible Plates: Clipsal Saturn, Saturn Zen
- Operating Temperature: 0°C to 45°C
- Dimensions (H x L x W): 23mm x 45mm x 23mm
- Weight: 0.1 kg
Key Features
- Universal dimmer mechanism compatible with most load types including LED, CFL, incandescent, and halogen
- 450W maximum load capacity
- Soft start operation to prolong lamp life
- Over-temperature and short-circuit protection
- Push button control for on/off and dimming functions
- Suits Clipsal Saturn and Saturn Zen series switch plates
- Trailing and leading edge dimming technology
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with local wiring rules and regulations.
Applications
- Residential: Living rooms, bedrooms, dining areas
- Commercial: Offices, meeting rooms, hospitality venues
- General: Any indoor location requiring adjustable lighting control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy savings by allowing users to reduce light output and power consumption
- Extends lamp life through soft start and dimming features
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal Saturn Universal Dimmer Mechanism 450W (CLI4062E450UDMTR) is available for immediate purchase. Ideal for residential and commercial lighting control applications.
