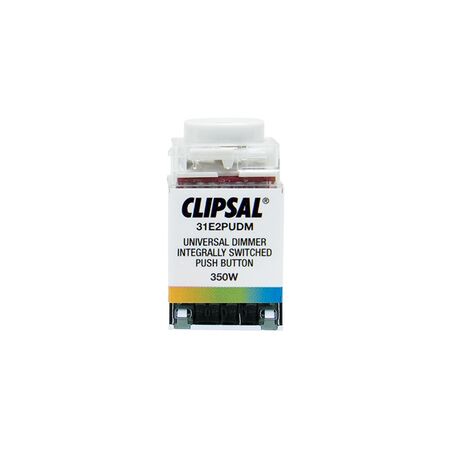

Universal Light Dimmer 350VA | Push Button | Multi-Gang Capacity
Universal light dimmer with 350VA capacity and push-button operation—ideal for residential and commercial lighting. Built for versatility, with multi-gang capacity and compatibility with dimmable CFL and LED loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Universal Light Dimmer 350VA | Push Button | Multi-Gang Capacity
SKU: 31E2PUDM-WE
Alternatively Known As: Universal Light Dimmer 350W, Push Button Dimmer, Multi-Gang Light Dimmer, Clipsal Series 30 Dimmer
Technical Specifications
- Voltage: 250 V
- Power rating: 350 W
- Frequency: 50 Hz
- Operation method: Push button
- Phase control: Leading edge and trailing edge
- Mounting center: 84 mm
- Operating temperature: 0 to 45 °C
- Light value memory: Yes
- Multi-gang capacity: Up to 6 dimmers per plate
- Protection: Over-current, over-temperature, short circuit
- EMC compliance: AS/NZS CISPR15, IEC60669-2-1, IEC61000-3-2
- Dimensions (H x L x W): 50mm x 40mm x 50mm
- Weight: 0.2 kg
Key Features
- 30 series standard range
- Leading edge/trailing edge phase control
- User selectable soft-start / kick-start operation
- User adjustable minimum brightness
- Multi-gang capacity up to six dimmer mechanisms per plate
- Wall or architrave mounting options
- Inbuilt over-current and over-temperature protection
- Full short circuit protection
- Fitted with suppressors to minimise radio frequency interference
- Complies with Australian and international EMC standards
- Compatible with selected dimmable CFL and LED loads
- Light value memory
- Push button operation
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting control
- Commercial lighting installations
- New electrical installations or retro-fit applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-saving dimming reduces electricity consumption
- Compatible with energy-efficient LED and CFL lighting
- Soft-start operation extends bulb life and reduces power surges
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Universal Light Dimmer 350VA Push Button Multi-Gang Capacity by Clipsal is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
