Universal Lockout MCB Device | Anodised Aluminium | Padlock Hole & 8mm Toggle Size | Bulk of 5 | Cirlock

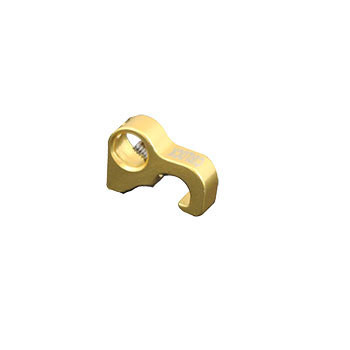

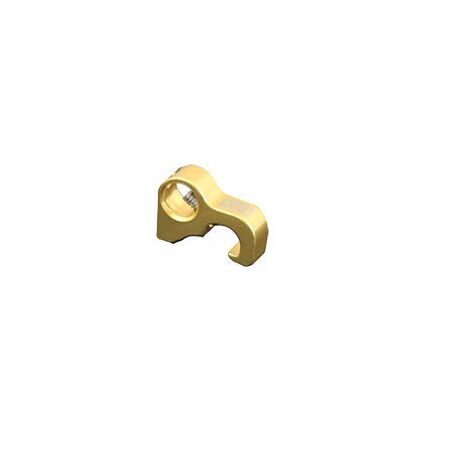

Universal lockout MCB device made from anodised aluminium, featuring a padlock hole and designed for toggles up to 8mm. Ideal for preventing unintended energisation during electrical maintenance, ensuring safety in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Universal Lockout MCB Device | Anodised Aluminium | Padlock Hole & 8mm Toggle Size | Cirlock
Brand: Cirlock
SKU: UCL-4-5B
Alternatively Known As: Circuit Breaker Lockout, MCB Lockout Device, Miniature Circuit Breaker Lockout, Electrical Lockout Device
Technical Specifications
- Material: Anodised Aluminium
- Padlock Holes: 1 x 8mm
- Maximum Toggle Size: 8mm
- Dimensions: 25mm x 20mm x 6mm
- Pack Sizes: Pack of 1, Pack of 25 Hang Packs, Box of 100 Hang Packs, Box of 100 Bulk Packed
- Dimensions (H x L x W): 20mm x 25mm x 6mm
- Weight: 0.05 kg
Key Features
- Universal lockout device clamps onto circuit breaker toggle in OFF position.
- Made from anodised aluminium for durability.
- Includes padlock hole to secure device and prevent access to set screw.
- Fits toggle sizes up to 8mm.
Professional Installation Requirements
- Installation should be performed by qualified personnel following lockout/tagout safety procedures to ensure effective isolation of energy sources.
Applications
- Used for locking out miniature circuit breakers to prevent unintended energisation.
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Promotes safe electrical maintenance reducing risk of accidents and associated environmental hazards.
Warranty Information
Standard manufacturer warranty applies. Please refer to Cirlock for specific warranty details.
Available Now
The Cirlock UCL-4 Universal Lockout MCB device is available now for immediate purchase. Ideal for electrical safety lockout applications in industrial and commercial settings.
