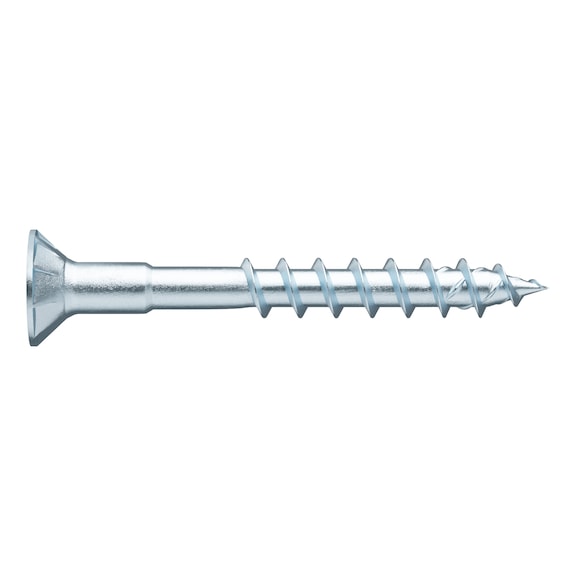

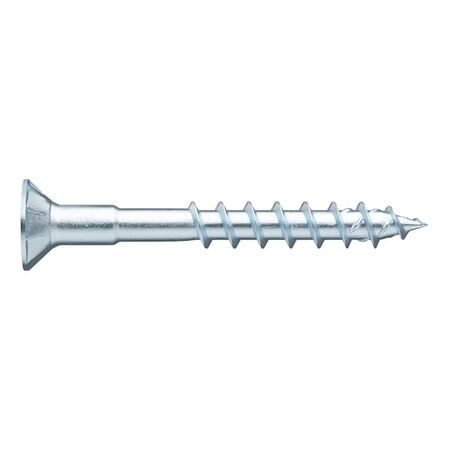

Universal Partial Thread Screw with Access Hole | Zinc Plated | Countersunk Milling Pocket Head | by Wurth
The Universal Partial Thread Screw with Access Hole is designed for fast, gap-free fastening in furniture assembly and interior construction. Featuring a zinc-plated finish for corrosion resistance and a countersunk milling pocket head for clean installation, this screw is ideal for wood-wood connections. Its reinforced thread geometry ensures optimal power transmission, making it perfect for use with Würth power tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Universal Partial Thread Screw with Access Hole | Zinc Plated | Countersunk Milling Pocket Head | by Wurth
Brand: Wurth
SKU: 162645030
Alternatively Known As: Wood screw, Partial thread screw, Countersunk wood screw, Zinc plated wood screw, Furniture screw, Interior construction screw
Technical Specifications
- Dimensions (H x L x W): 2.6mm x 30mm x 8.6mm
- Weight: 0.02 kg
Key Features
- Universal partial-thread screw with access hole for fast, gap-free fastening
- Ideal power transmission due to RW drive with larger contact area
- Countersunk milling pocket head with milling pockets for clean countersinking
- Head recess allows covering with colour-coordinated cover caps
- Optimised milling pockets reduce chipping in coated chipboards up to 4.5 mm
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimised recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation lowers screw-in force
- Compatible with Würth BS 14-A Combi and BS 12-A Power machines
Professional Installation Requirements
- Recommended installation using compatible Würth power tools (BS 14-A Combi, BS 12-A Power) for optimal fastening performance.
Applications
- Furniture assembly
- Cabinet making
- Indoor dry or sheltered wood-wood connections
- Interior construction involving wood materials
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads) for construction fastening reliability
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life
- Durable design reduces need for replacements and waste
Warranty Information
Screw requiring approval with ETA-11/0190 certification ensuring quality and reliability.
Available Now
Available for immediate purchase, ideal for furniture assembly and interior wood construction applications.
