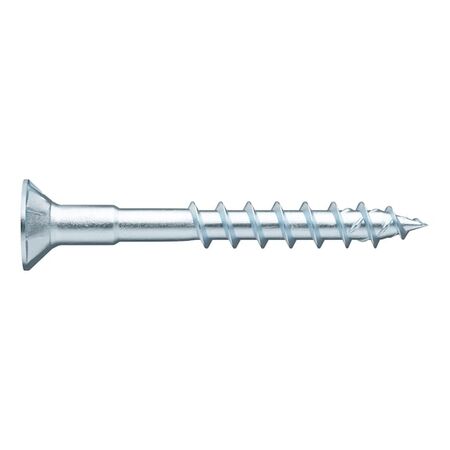

Universal Partial-Thread Wood Screw Access Hole & Countersunk Head Zinc Plated Wurth
The Universal Partial-Thread Wood Screw is designed for fast, gap-free fastening in wood-wood connections
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 2.6mm x 35mm x 8.6mm
- Weight: 0.02 kg
Key Features
- Universal partial-thread screw with access hole for fast, gap-free fastening of wood-wood connections
- Ideal power transmission due to RW20 drive with larger contact area at the bit
- Countersunk milling pocket head with milling pockets for clean countersinking
- Head recess allows covering with colour-coordinated cover caps with retaining pins
- Optimised milling pockets prevent chipping in coated chipboards up to 4.5 mm diameter
- Reinforced asymmetrical coarse thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimised recessing and biting
- Dome-shaped milling elements in tip reduce splitting effect
- Friction-reduced thread rotation lowers screw-in force
- Suitable for use in board ply wood, hardwood, LVL, wood, derived timber products, and softwood
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Recommended installation using compatible power tools such as Würth BS 14-A Combi or Würth BS 12-A Power for optimal performance and safety.
Applications
- Furniture assembly
- Cabinet making
- Indoor dry or sheltered wood-wood connections
- Interior construction
Standards & Compliance
- Complies with AS/NZS 4785 - Timber screws (implied by product type and application)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
- Efficient fastening reduces material waste and rework
Warranty Information
Warranty details available upon request from Wurth, typically covering manufacturing defects.
Available Now
The Wurth ASSY 4 CSMP HO universal partial-thread wood screw is available for immediate purchase, ideal for furniture and interior wood construction applications.
