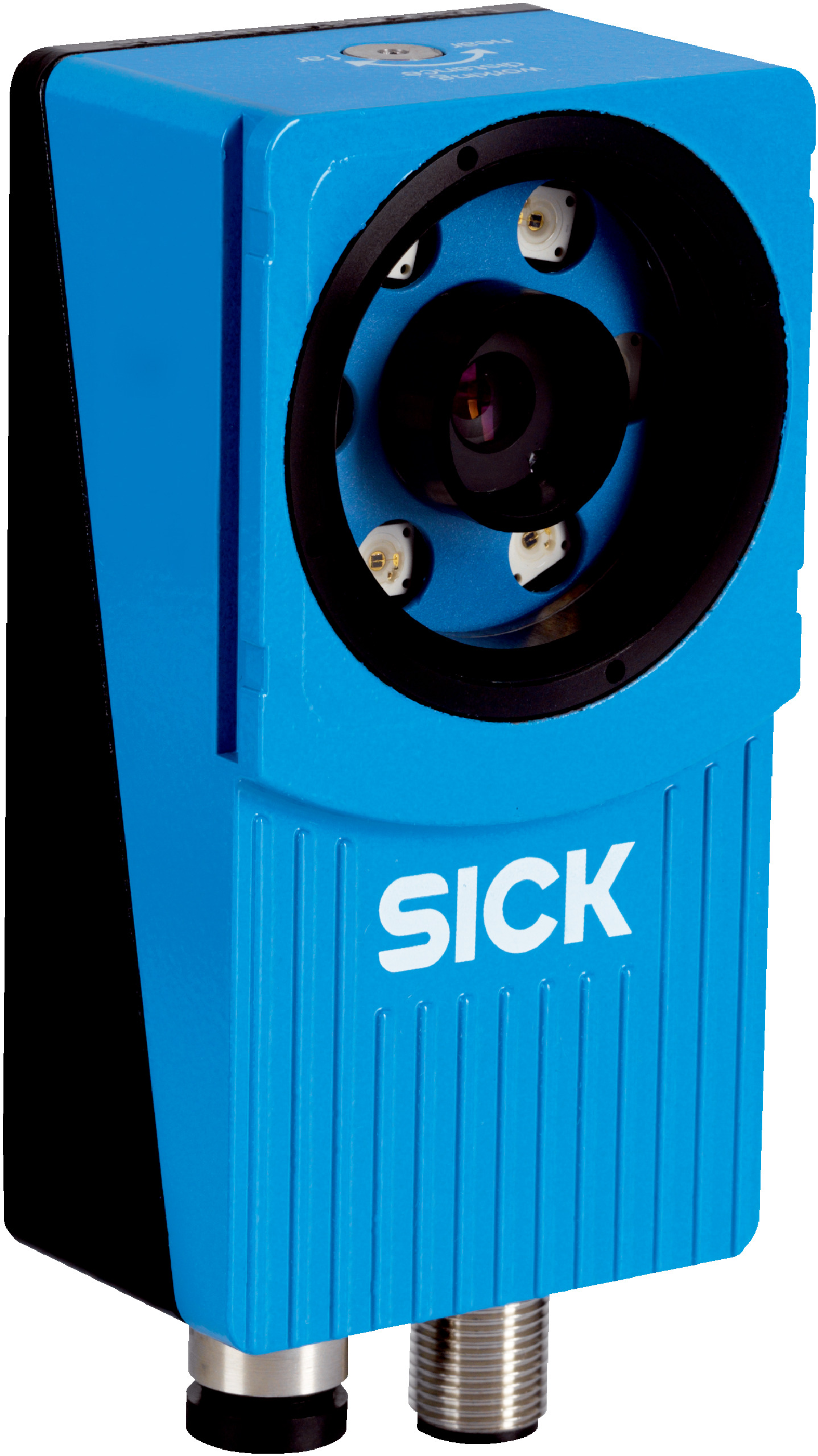

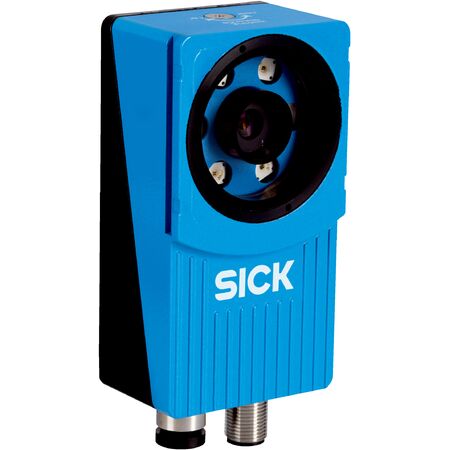

Universal Robots Kit VSPM-6B2413 | 2D Snapshot Technology | IP67 Rated Aluminum Housing | by SICK
The Universal Robots Kit VSPM-6B2413 features advanced 2D snapshot technology with a CMOS monochrome image sensor, delivering high-speed performance at 40 fps. Ideal for industrial automation and robotics, this kit supports object detection, optical inspection, and quality control, ensuring precise measurements and reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Image sensor: CMOS monochrome, 640 px x 480 px (0.3 Mpixel)
- Scan/frame rate: 40 fps
- Supply voltage: 24 V DC, ±20%
- Current consumption: < 450 mA without output load
- Connection type: M12 12-pin male and M12 4-pin female connectors
- Enclosure rating: IP67
- Housing material: Aluminum
- LED class: Risk group 1 (low risk, IEC62471:2006)
- Data transmission rate: 100 Mbit/s via Ethernet and EtherNet/IP™
- Digital inputs: 4 inputs (24 V), configurable
- Digital outputs: 3 outputs (24 V, B-type), configurable
- Maximum encoder frequency: 40 kHz
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 38mm x 100mm x 53mm
- Weight: 0.5 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Configurable toolkit including Object Locator, Pixel Counter, Pattern Blob Finder, and more
- Adjustable manual optical focus
- Perspective and lens distortion correction with mm results
- Robot coordinate alignment supported
- Working range of 50 mm or more
- Risk group 1 LED class (low risk, IEC62471:2006)
- Offline support via emulator
- High-speed Ethernet and EtherNet/IP™ communication at 100 Mbit/s
- Web server operator interface and SOPAS ET configuration software
- IP67 rated aluminum housing for robust industrial use
- Supports up to 64 inspections and 32 reference images
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with robotic systems and compliance with safety standards.
Applications
- Industrial automation and robotics
- Object detection and measurement
- 2D position determination
- Optical inspection and quality control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise automation reducing waste and energy consumption in manufacturing processes
- Durable IP67 rated housing extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK VSPM-6B2413 Universal Robots Kit is available for immediate purchase, ideal for industrial automation and robotics applications.
