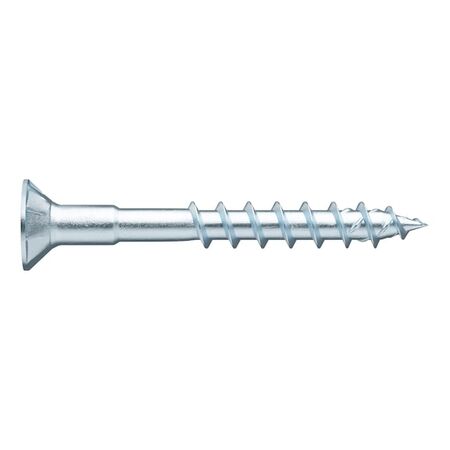

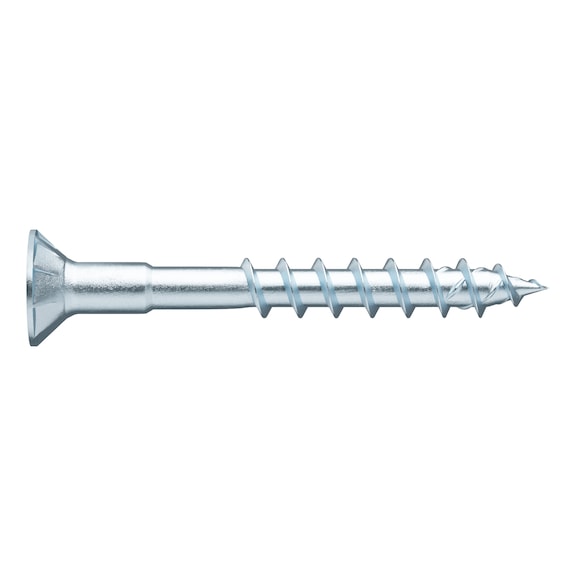

Universal Screw with Access Hole | Zinc Plated | Countersunk Milling Pocket Head | @Pack of 250 | by Wurth
The universal screw with access hole is designed for fast, gap-free fastening of wood-wood connections. With a zinc-plated finish and countersunk milling pocket head, it ensures optimal power transmission and stability. Ideal for furniture assembly and interior construction, this screw is compatible with various power tools for professional installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Universal Screw with Access Hole | Zinc Plated | Countersunk Milling Pocket Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 162645055
Alternatively Known As: Wood screw with access hole, Countersunk wood screw, Zinc plated wood screw, Furniture screw, Interior construction screw
Technical Specifications
- Nominal diameter: 4.5 mm
- Length: 55 mm
- Thread length: 33 mm
- Head type: Countersunk milling pocket head with milling pockets
- Head access hole diameter: 2.5 mm
- Head diameter: 8.6 mm
- Head height: 2.6 mm
- Internal drive: RW20
- Thread type: Wood screw thread, partial thread, coarse thread
- Core diameter: 2.7 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Min/max screw-in angle: 0-90 degrees
- Suitable materials: Board ply wood, hardwood, LVL, wood, derived timber products, softwood
- Suitable machines: Würth BS 14-A Combi, Würth BS 12-A Power
- Additional accessory: Cover cap
- Screw requiring approval: Yes, ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.6mm x 55mm x 8.6mm
- Weight: 0.02 kg
Key Features
- Universal partial-thread screw with access hole for fast, gap-free fastening of wood-wood connections
- Ideal power transmission due to RW drive with larger contact area at the bit
- More stability and precise positioning with tight-fit recess and perfect bit fit
- Compatibility with previous AW drive
- Clean countersinking in softwood or wood material with milling pockets
- Head recess for covering screw head with colour coordinated cover caps
- Optimised milling pockets prevent chipping in coated chipboards up to 4.5 mm diameter
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimised recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation lowers screw-in force
Professional Installation Requirements
- Recommended installation by professionals using compatible power tools such as Würth BS 14-A Combi or BS 12-A Power for optimal fastening performance.
Applications
- Furniture assembly
- Cabinet construction
- Indoor dry or sheltered wood-wood connections
- Interior construction
Standards & Compliance
- Complies with AS/NZS 4785 – Timber screws for structural purposes
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth standard warranty applies; screw requiring approval ETA-11/0190 ensures quality and reliability.
Available Now
Available for immediate purchase, ideal for furniture and interior wood construction applications.
