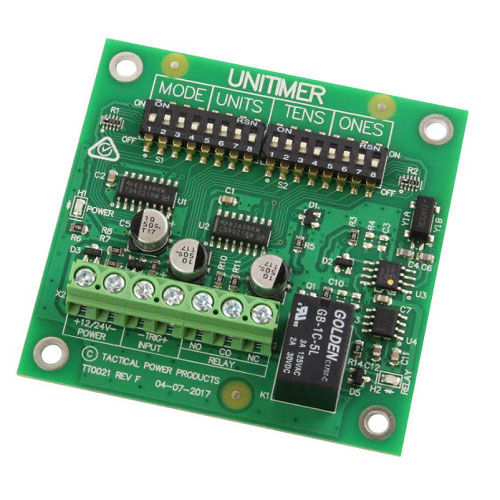

Universal Timer Module 12V DC 1s to 99 Days SPDT Relay Ness

BRAND: Ness
SKU: POW458
$76.70 List price: $102.20
+ −
30 Days Return Electricians Unlock Trade Access
Ness 12V DC universal timer module features a 1 second to 99 day range and SPDT relay. Ideal for alarm and security installations.

Alternatively Known As: Ness Universal Timer Relay, 12V DC Delay Timer, Programmable SPDT Timer Module

Technical Specifications
  • Model: TacPower TIM-01
  • SKU: POW458
  • Operating Voltage: 12V DC
  • Timing Range: 1 second to 99 days
  • Relay Type: SPDT
  • Relay Rating: 1A at 30V DC
  • Operating Current: 35mA at 12V DC
  • Trigger Logic: Positive or negative trigger compatible
  • Programming: Four banks of DIP switches
  • Operating Modes: One-shot, retriggerable one-shot, strobe, clutch relay, programmed pulse, debounce, stand-off timer and fail-safe/fail-secure functions
  • Dimensions (H x L x W): 20mm x 85mm x 54mm
  • Weight: 0.1 kg
Key Features
  • Eight field-programmable relay control functions
  • Adjustable timing from 1 second to 99 days
  • Supports positive and negative trigger inputs
  • SPDT relay output for general-purpose switching
  • Fail-safe and fail-secure operating modes
  • DIP-switch programming
  • Suitable for alarm, access control and security installations
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security or electrical technician. Follow the manufacturer's wiring instructions and AS/NZS 3000 requirements where the module forms part of an electrical installation.
Applications
  • Security alarm systems
  • Access control and door-lock control
  • Door-open-too-long alarm applications
  • Industrial control and automation
  • Home automation and general-purpose time-delay switching
Standards & Compliance
  • AS/NZS 3000:2018 – applicable low-voltage electrical installation and wiring requirements when incorporated into an electrical installation
  • AS/NZS IEC 60839.11.1:2019 – relevant electronic security system and component requirements where used within an applicable security installation
Environmental Benefits
  • Low-voltage DC operation supports integration with efficient security control systems
  • Low operating current of approximately 35mA at 12V DC helps limit energy consumption
  • Programmable timing and relay control can reduce unnecessary operation of connected equipment
  • Compact, reusable module design can reduce replacement material and electronic waste
Warranty Information

Ness Corporation's general warranty provides three years against defects for Ness-manufactured products or products supplied by Ness Corporation, unless otherwise specified. Warranty claims are subject to Ness terms and conditions.

Available Now

Available through Ness Corporation and authorised Australian security and electrical distributors.
