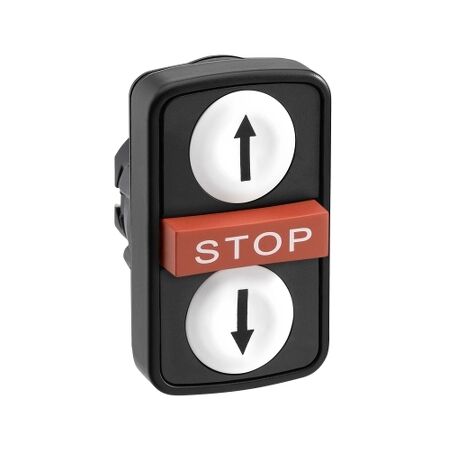

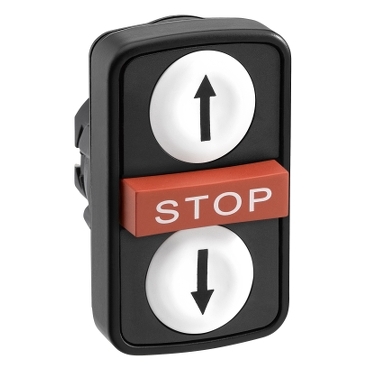

Up Down & Stop Button | Triple Headed Design | IP66/IP67/IP69K Rated | by Clipsal
The Up Down & Stop Button is a triple-headed push button designed for industrial control panels, featuring distinct color coding for enhanced safety. With IP66/IP67/IP69K protection and high mechanical durability, it's perfect for demanding environments like conveyor systems and automated equipment. Ideal for qualified electricians, this button ensures reliable operation in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Up Down & Stop Button | Triple Headed Design | IP66/IP67/IP69K Rated | by Clipsal
Brand: Clipsal
SKU: SCHZB5AA71114
Alternatively Known As: Industrial push button, triple push button, up down stop switch, Harmony XB5 control button, Clipsal control station
Technical Specifications
- Type: Triple headed push button
- Button functions: Up, Down, Stop
- Button colors: White (Up/Down), Red (Stop)
- Button style: Flush (Up/Down), Projecting (Stop)
- Marking: Up, Down, Stop symbols
- Mounting diameter: 22mm
- Material: Plastic
- Series: Harmony XB5/XB4
- Mechanical durability: 10,000,000 cycles
- Degree of protection: IP66, IP67, IP69, IP69K
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 60mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Triple headed design for Up, Down, and Stop functions
- Distinct color coding for enhanced safety and clarity
- Flush and projecting button styles for tactile differentiation
- 22mm mounting diameter compatible with standard panels
- High mechanical durability for industrial environments
- IP66/IP67/IP69/IP69K protection for harsh conditions
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure compliance with safety standards.
Applications
- Industrial machinery control panels
- Conveyor systems
- Automated equipment
- Building management systems
- Elevator and hoist controls
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Ingress protection ensures longevity in demanding environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for industrial control panels, machinery, and automation systems requiring reliable Up, Down, and Stop functions.
