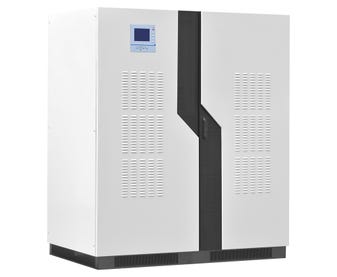

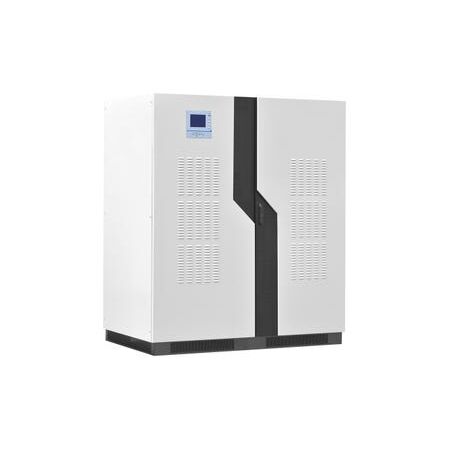

UPS 10kVA Excluding Batteries e-PowerSeries
e-PowerSeries 10kVA UPS features high-capacity power protection, supplied without batteries for external battery banks. Ideal for data centres and critical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EPower EP-10 UPS, 10kVA Online UPS, Transformer-Based UPS, Battery-Excluded UPS
Technical Specifications
- Rated Capacity: 10kVA / 10,000VA
- Rated Output Power: 9kW / 9,000W
- Topology: Online double conversion
- Transformer: Galvanic isolation transformer
- Mounting Format: Tower
- Battery Configuration: External battery bank; batteries excluded
- Output Power Factor: 0.9
- Input and Output: Three-phase UPS system
- Display: LCD status panel with emergency power-off function
- Parallel Operation: N+X parallel redundancy
- Communications: Multiple communication interfaces and optional network management
- Operating Temperature: 0°C to 40°C
- Recommended DC Battery Bus: 192 lead-acid cells; 432V nominal float voltage
- Ventilation: Internal forced-air fans
- Dimensions (H x L x W): 1195mm x 800mm x 570mm
- Weight: 213 kg
Key Features
- Provides continuous online double-conversion power protection for critical loads
- Galvanic isolation transformer supports electrical isolation and load compatibility
- Supplied without batteries for connection to a separately specified external battery bank
- LCD status panel provides operating and alarm information
- Emergency power-off input included
- Supports N+X parallel redundancy for increased availability
- Generator-optimised operation for installations with standby generation
- Suitable for data centres, industrial sites, telecommunications and other critical-load applications
Professional Installation Requirements
- Installation, external battery connection, commissioning and maintenance must be performed by a licensed electrical contractor or suitably authorised UPS technician. The installation must include correctly sized AC and DC protection, isolation, earthing, ventilation and battery-bank controls in accordance with the manufacturer’s instructions and applicable Australian standards.
Applications
- Data centres and server rooms
- Telecommunications and network infrastructure
- Industrial control systems
- Security and emergency systems
- Remote industrial sites
- Medical, laboratory and other critical electrical loads
Standards & Compliance
- AS IEC 62040.1: Applicable UPS general and safety requirements
- AS IEC 62040.2: Applicable UPS electromagnetic compatibility requirements
- AS IEC 62040.3: Applicable UPS performance and test requirements
- AS/NZS 3000: Applicable electrical installation and wiring requirements
Environmental Benefits
- External battery configuration allows batteries to be sized for the required autonomy and replaced separately from the UPS electronics
- Replaceable external battery banks can extend system service life and reduce whole-unit replacement waste
- Galvanic transformer-based construction is suited to long-life critical-power installations
- Metallic electrical equipment components can be recovered through appropriate electronics recycling streams
Warranty Information
PSS Distributors standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to proof of purchase, correct installation, commissioning and operation in accordance with the manufacturer’s instructions. Batteries are excluded unless separately covered.
Available Now
Available through PSS Distributors and authorised Australian distributors; contact the supplier to confirm current availability and lead time.
