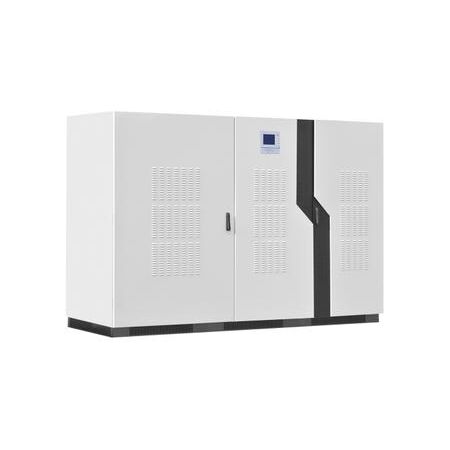

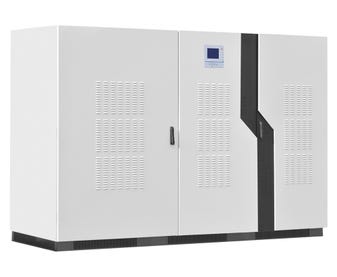

UPS 120kVA Excluding Batteries e-PowerSeries
e-PowerSeries 120kVA UPS features high-capacity power protection, supplied without batteries for external battery banks. Ideal for data centres and critical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 120 kVA Online UPS, Three-Phase UPS, External-Battery UPS, Data Centre UPS
Technical Specifications
- Rated Capacity: 120 kVA
- Configuration: Three-phase input and three-phase output
- Battery Configuration: External battery bank required; batteries excluded
- UPS Topology: Online double-conversion UPS
- Power Factor: Approximately 0.9, subject to model configuration
- Efficiency: Greater than 92%, subject to operating load and configuration
- Display: LCD status and operating information display
- Communications: RS-232 and RS-485; optional SNMP, Modbus and dry-contact monitoring
- Protection Functions: Overload, short circuit, battery low voltage and UPS fault protection
- Intended Environment: Indoor installation in a clean, dry, controlled electrical room
- Dimensions (H x L x W): 1200mm x 850mm x 442mm
- Weight: 270 kg
Key Features
- High-capacity 120 kVA power protection for critical electrical loads
- Supplied without batteries for flexible external battery-bank sizing
- Suitable for data centres, server rooms and other critical infrastructure
- Online UPS operation provides conditioned, regulated output power
- External battery configuration allows backup runtime to be selected for the installation
- LCD interface provides local UPS operating and alarm information
- Communication and remote-monitoring options may include SNMP, Modbus and dry contacts
- Designed for continuous protection against mains interruptions and power disturbances
Professional Installation Requirements
- Installation, external battery-bank connection, commissioning and maintenance must be performed by suitably qualified electrical and UPS technicians. The installation should comply with AS/NZS 3000 and the manufacturer's requirements, with appropriate isolation, earthing, overcurrent protection, ventilation and battery safety controls. External batteries and DC cabling are excluded from this product.
Applications
- Data centres and server rooms
- Telecommunications and network infrastructure
- Industrial control systems
- Financial services and transaction-processing equipment
- Healthcare and laboratory facilities
- Security, monitoring and emergency-support systems
- Commercial buildings with critical electrical loads
Standards & Compliance
- AS 62040.1:2019 – Uninterruptible power systems, safety requirements
- AS/NZS 3000:2018 – Electrical installations, Wiring Rules, applicable to permanent UPS installation
- AS/NZS 60335.2.29 – Battery chargers, potentially applicable to the external-battery charging function; confirm configuration-specific certification
Environmental Benefits
- External battery-bank design allows batteries to be replaced or upgraded independently of the UPS cabinet, reducing whole-system replacement waste
- High operating efficiency can reduce energy losses and associated cooling demand compared with less efficient UPS systems
- Long service life and maintainable power electronics can reduce equipment replacement frequency
- Battery exclusion allows selection of an appropriately sized battery system and avoids supplying unnecessary battery capacity
Warranty Information
BPE warranty information associated with the e-PowerSeries range states a standard warranty period of 13 months from invoice date or 12 months from installation, whichever occurs first; confirm the applicable warranty on the sales invoice. Batteries and installation-related work may be subject to separate terms.
Available Now
Available through specialist UPS suppliers and authorised Australian distributors subject to quotation, configuration and external battery-bank requirements.
UPS Sizing Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
