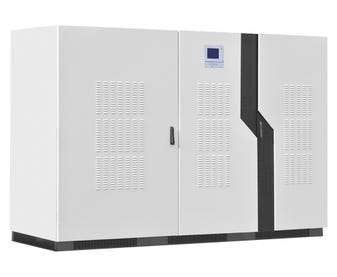

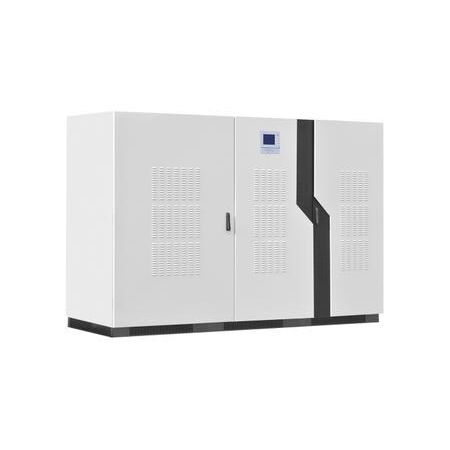

UPS 160kVA Excluding Batteries e-PowerSeries

BRAND: CABAC
SKU: EP160
$67,367.30 List price: $89,823.10
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
e-PowerSeries 160kVA UPS features high-capacity power protection, supplied without batteries for external battery banks. Ideal for data centres and critical loads.

Alternatively Known As: EP160 UPS, 160 kVA Three-Phase UPS, Epower Series UPS, Transformer-Based Online UPS

Technical Specifications
  • Model: EP160
  • Rated Capacity: 160 kVA / 144 kW
  • Topology: Online double conversion with transformer-based galvanic isolation
  • Input: 380/400/415 Vac, three-phase plus neutral and protective earth
  • Input Frequency: 50/60 Hz ±5 Hz
  • Input Power Factor: ≥0.98 with input filter
  • Output Voltage: 380/400/415 Vac ±1%, three-phase plus neutral and protective earth
  • Output Frequency: 50/60 Hz ±0.05%
  • Output Power Factor: 0.9 lagging
  • Maximum Output Current: 243 A
  • Output Harmonic Distortion: <2% at linear load
  • Transfer Time: 0 ms from line mode to battery mode
  • Battery System: External battery bank, nominal 384 V DC
  • Overload Capability: ≤110% for 60 minutes; ≤125% for 10 minutes; ≤150% for 1 minute before bypass
  • Efficiency: Approximately 92%
  • Communications: RS232 and RS485; optional dry contacts and SNMP
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -25°C to 55°C
  • Relative Humidity: 0–95%, non-condensing
  • Maximum Operating Altitude: <1500 m
  • Noise Level: <72 dB at 1 m
  • Safety and EMC References: IEC/EN 62040-1, IEC/EN 62040-2 and IEC/EN 62040-3
  • Dimensions (H x L x W): 1900mm x 1635mm x 1040mm
  • Weight: 1192 kg
Key Features
  • Supplied without batteries for connection to an external battery bank
  • Online double-conversion power conditioning
  • Transformer-based galvanic isolation
  • Internal maintenance bypass and input surge filtering
  • Emergency power-off function and LCD status display
  • N+X parallel redundancy capability
  • Generator-compatible operating mode
  • Intelligent battery management and battery-status monitoring
  • Comprehensive overload, short-circuit, over-temperature and over-voltage protection
  • Suitable for high-capacity critical-load applications
Professional Installation Requirements
  • Installation, battery-bank connection, commissioning and servicing must be completed by suitably qualified electrical and UPS technicians. The installation should comply with AS/NZS 3000 and the applicable AS 62040 requirements, including correct isolation, earthing, cable sizing, protection and battery safety procedures.
Applications
  • Data centres and server rooms
  • Telecommunications and network infrastructure
  • Industrial control systems
  • Medical and healthcare facilities
  • Mining and process facilities
  • Security, surveillance and access-control systems
  • Point-of-sale and other critical electronic loads
Standards & Compliance
  • AS 62040.1:2019 — applicable Australian safety standard for uninterruptible power systems
  • AS/NZS 3000:2018 — electrical installation and wiring requirements applicable to permanent UPS installations
  • IEC/EN 62040-1, IEC/EN 62040-2 and IEC/EN 62040-3 — standards referenced in the published EpowerSeries technical data
Environmental Benefits
  • Approximately 92% operating efficiency can reduce energy losses during continuous operation
  • External battery-bank configuration allows battery replacement without replacing the UPS power-conversion cabinet
  • Intelligent battery management is designed to support longer battery service life
  • Transformer isolation and protective control functions support reliable operation and may reduce premature equipment replacement
Warranty Information

A specific warranty duration for the EpowerSeries EP160 was not published in the available manufacturer and distributor information. Warranty coverage should be confirmed with the authorised Australian distributor and will generally be subject to installation, commissioning and maintenance conditions.

Available Now

Available through EpowerSeries and authorised Australian distributors, generally supplied as a project or quotation-based commercial UPS package.
