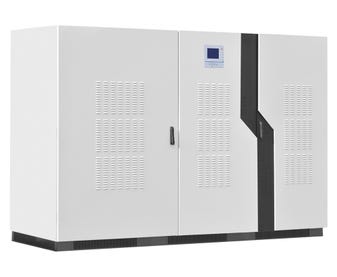

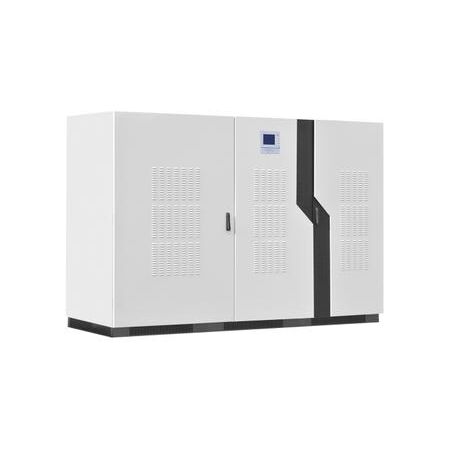

UPS 200kVA Excluding Batteries e-PowerSeries

BRAND: CABAC
SKU: EP200
$102,196.40 List price: $136,261.80
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
e-PowerSeries 200kVA UPS features high-capacity power protection, supplied without batteries for external battery banks. Ideal for data centres and critical loads.

Alternatively Known As: EPOWER 200kVA UPS, 200kVA Three-Phase UPS, Transformer-Based Industrial UPS, External-Battery UPS

Technical Specifications
  • Rated Capacity: 200kVA / 180kW
  • Topology: Online double conversion, transformer-based
  • Input: Three-phase, 380/400/415Vac
  • Output: Three-phase, 380/400/415Vac ±1%
  • Output Power Factor: 0.9
  • Input Power Factor: ≥0.97 with filter
  • Battery Configuration: External battery bank, batteries excluded
  • Nominal Battery Voltage: 384Vdc
  • Efficiency: Approximately 92.5%
  • Operating Frequency: 50/60Hz ±0.05%
  • Overload Capability: ≤110% for 60 minutes, ≤125% for 10 minutes, ≤150% for 1 minute
  • Parallel Operation: N+X redundancy, up to six units
  • Communications: RS232, RS485 and optional MODBUS/SNMP
  • Protection: Overvoltage, undervoltage, overload, short circuit, overheating and back-feed protection
  • Operating Temperature: 0°C to 40°C
  • Relative Humidity: Up to 95%, non-condensing
  • Noise Level: Less than 72dB
  • Transfer Time: 0ms
  • Dimensions (H x L x W): 1600mm x 800mm x 1200mm
  • Weight: 1030 kg
Key Features
  • High-capacity 200kVA power protection for critical infrastructure
  • Online double-conversion design provides continuous conditioned power
  • Transformer-based architecture supports demanding and variable loads
  • Supplied without batteries for connection to a separately specified external battery bank
  • Three-phase input and three-phase output
  • Supports N+X parallel redundancy with up to six units
  • Generator-compatible power walk-in function
  • Emergency Power Off facility
  • LCD and LED status monitoring
  • Optional SNMP and MODBUS communications for remote monitoring
  • Battery self-test and intelligent battery management functions
Professional Installation Requirements
  • Installation, battery-bank connection, commissioning and maintenance must be completed by suitably qualified electrical and UPS technicians. The installation should comply with AS/NZS 3000 and the manufacturer's requirements, with external batteries installed in accordance with applicable battery-system safety requirements.
Applications
  • Data centres and server rooms
  • Telecommunications infrastructure
  • Medical and healthcare facilities
  • Industrial process control
  • Manufacturing facilities
  • Network and communications equipment
  • Other critical loads requiring high-capacity uninterruptible power protection
Standards & Compliance
  • AS/NZS 3000:2018 for permanent electrical installation, wiring, isolation and earthing
  • AS IEC 62040.1 for UPS safety requirements
  • AS IEC 62040.2 for UPS electromagnetic compatibility
  • AS IEC 62040.3 for UPS performance and testing
  • AS/NZS 5139 may apply to the installation of the external battery energy storage system, subject to battery type and system configuration
Environmental Benefits
  • External battery configuration allows battery capacity to be selected to suit the required runtime, avoiding unnecessary battery material
  • Separately replaceable battery banks can extend the usable service life of the UPS cabinet and reduce whole-system replacement waste
  • Power conditioning can help protect critical equipment and reduce premature electronic equipment replacement
  • Transformer and metal cabinet components are suitable for recovery and recycling at end of life
Warranty Information

KSTAR provides warranty service through its service network, but a standard warranty period for this EPOWER UPS was not identified. Confirm the applicable warranty term, commissioning conditions and service coverage on the sales quotation; warranty eligibility may require installation by an authorised or properly qualified service provider.

Available Now

Available through KSTAR and authorised commercial UPS distributors, subject to project specification, external battery-bank selection and quotation.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
