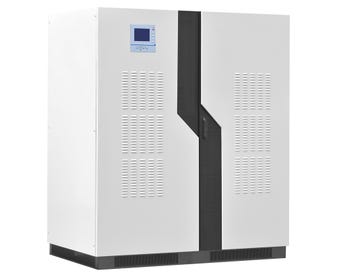

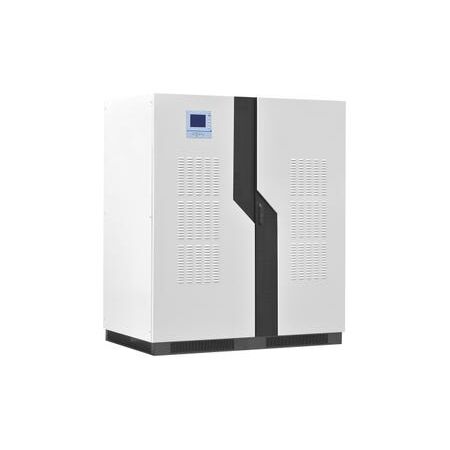

UPS 20kVA Excluding Batteries e-PowerSeries
e-PowerSeries 20kVA UPS features high-capacity power protection, supplied without batteries for external battery banks. Ideal for data centres and critical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EPower EP20 UPS, EPowerSeries 20kVA UPS, Transformer-Based Online UPS, External Battery UPS
Technical Specifications
- Model: EP-20
- Rated Capacity: 20kVA / 18kW
- Topology: Online double-conversion
- Configuration: Three-phase input and three-phase output
- Transformer: Galvanic isolation transformer
- Battery Configuration: External battery bank, 384VDC nominal
- Input Voltage: 380V, 400V or 415V, three-phase plus neutral and protective earth
- Input Frequency: 50/60Hz, automatic sensing
- Input Power Factor: 0.98 with harmonic filter
- Output Voltage: 380V, 400V or 415V AC
- Output Frequency: 50/60Hz ±0.05%
- Output Waveform: Pure sinewave
- Transfer Time: 0ms between line and battery modes
- Overload Capability: 110% for 60 minutes, 125% for 10 minutes, 150% for 1 minute
- Efficiency: Approximately 90% online, above 92% in bypass mode
- Communications: Dry contacts, RS232 and RS485; optional SNMP
- Operating Temperature: 0°C to 40°C
- Relative Humidity: 0–95%, non-condensing
- Maximum Operating Altitude: Below 1500m
- Noise Level: Below 65dB
- Supplied Configuration: UPS unit only; batteries excluded
- Dimensions (H x L x W): 1200mm x 800mm x 570mm
- Weight: 242 kg
Key Features
- Continuous online double-conversion power protection
- Galvanic isolation transformer for electrical separation and load compatibility
- Designed for external battery banks and extended runtime applications
- Pure sinewave output for sensitive electronic and critical loads
- Zero transfer time between mains and battery operation
- Static bypass and manual maintenance bypass functionality
- N+X parallel redundancy capability, with up to four units noted for the series
- Generator-optimised operation
- LCD status panel with UPS, load, battery and fault information
- Protection against surges, voltage dips, overload and battery overcharge
Professional Installation Requirements
- Installation, external battery connection and commissioning must be performed by an appropriately licensed electrical contractor or approved UPS technician. The system should be installed in accordance with the manufacturer’s instructions, AS/NZS 3000 and applicable UPS safety requirements. External battery banks, isolation, bypass equipment, cabling, ventilation and protection must be designed for the site load and battery arrangement.
Applications
- Data centres and server rooms
- Telecommunications and network infrastructure
- Medical and healthcare facilities
- Industrial control and automation systems
- Mining and remote industrial sites
- Security, surveillance and access-control systems
- Manufacturing and process-critical equipment
- Critical loads requiring extended runtime from external batteries
Standards & Compliance
- AS 62040.1: Uninterruptible power systems safety requirements
- AS/NZS 3000: Electrical installations and wiring requirements for hardwired UPS installation
- AS IEC 62040.2: Applicable UPS electromagnetic compatibility requirements
- AS IEC 62040.3: UPS performance specification and test requirements
Environmental Benefits
- External battery architecture allows battery capacity and runtime to be sized to the application, avoiding unnecessary battery material and replacement waste
- Transformer-based design supports reliable operation over a broad range of critical loads, potentially extending equipment service life
- Optional harmonic filtering and generator-optimised operation can reduce upstream electrical losses and improve system efficiency
- Lead-acid battery banks, where used, are recyclable through established battery recovery systems
Warranty Information
PSS Distributors’ standard warranty is a 2-year return-to-base warranty from the original purchase date, covering defects in materials or workmanship subject to the published warranty conditions. Hardwired products must be commissioned by an approved and authorised PSS technician or contractor to maintain warranty validity.
Available Now
Available through PSS Distributors and authorised Australian distributors, subject to quotation, project requirements and current stock availability.
