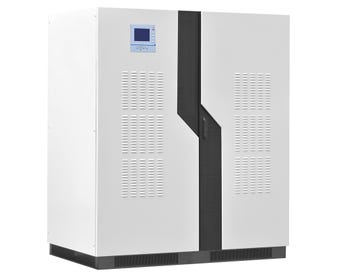

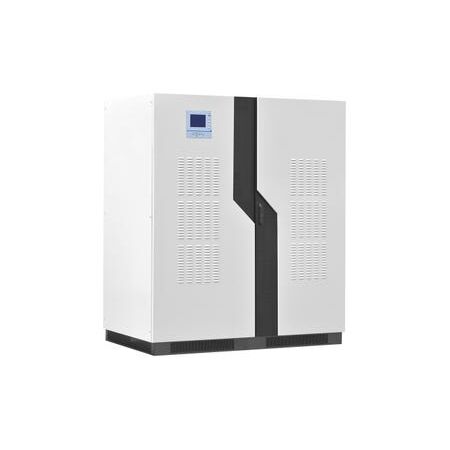

UPS 30kVA Excluding Batteries e-PowerSeries

BRAND: CABAC
SKU: EP30
$20,925.20 List price: $27,900.30
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
e-PowerSeries 30kVA UPS features high-capacity power protection, supplied without batteries for external battery banks. Ideal for data centres and critical loads.

Alternatively Known As: EPower 30kVA UPS, EP-30 UPS, NTV30EP Transformer-Based UPS, Three-Phase Online UPS

Technical Specifications
  • Rated Capacity: 30kVA / 27kW
  • Topology: Online double conversion
  • Configuration: Three-phase input and three-phase output
  • Output Power Factor: 0.9
  • Nominal Voltage: 380/400/415V AC, three-phase
  • Frequency: 50/60Hz
  • Battery Configuration: External battery bank; 384V DC nominal
  • Transfer Time: 0ms from line mode to battery mode
  • Overload Capability: Up to 110% for 60 minutes, 125% for 10 minutes and 150% for 1 minute before bypass
  • Input Power Factor: Up to 0.97 with filter
  • Operating Temperature: 0–40°C
  • Relative Humidity: 0–95%, non-condensing
  • Communications: RS232, RS485, EPO, optional dry contacts and SNMP
  • Installation Format: Tower
  • Source Reference: EPower 30kVA listing and NTV30EP E Power Series datasheet ([mssdatasolutions.com.au](https://www.mssdatasolutions.com.au/p/power-supplies-batteries/uninterruptible-power-supplies/on-line-ups/ep-30))
  • Dimensions (H x L x W): 1400mm x 720mm x 690mm
  • Weight: 204 kg
Key Features
  • Supplied without batteries for connection to a separately specified external battery bank
  • Online double-conversion architecture for continuous voltage and frequency conditioning
  • Galvanic isolation transformer for compatibility with a wide range of loads
  • N+X parallel redundancy supporting scalable critical-load protection
  • Generator-optimised operation with power-walk-in functionality
  • LCD status panel with emergency power-off control
  • Intelligent battery management with automatic float and boost charging
  • Pure sine-wave output suitable for data centres, communications infrastructure and other critical loads
Professional Installation Requirements
  • Installation, commissioning and connection to mains and external battery systems must be completed by a suitably licensed electrical contractor. Installation should follow AS/NZS 3000 and the manufacturer's requirements, including isolation, earthing, cable sizing, battery protection and ventilation.
Applications
  • Data centres and server rooms
  • Telecommunications and network infrastructure
  • Industrial control and automation systems
  • Medical and other critical electrical loads
  • Remote industrial sites
  • Commercial facilities requiring extended external-battery runtime
Standards & Compliance
  • Relevant UPS safety standard: AS 62040.1:2019
  • Relevant UPS EMC standard: AS 62040.2
  • Relevant UPS performance and test standard: AS 62040.3
  • Electrical installation reference: AS/NZS 3000:2018
  • The available E Power Series datasheet states IEC/EN 62040-1, IEC/EN 62040-2 and IEC/EN 62040-3; verify Australian RCM/EESS documentation for the specific supplied unit before installation. ([voltantechnology.com](https://www.voltantechnology.com/media/ProductsDatasheet/10-800KVA_E_POWER_SERIES_TRANSFORMER_UPS.pdf))
Environmental Benefits
  • External battery configuration allows battery capacity and runtime to be specified for the actual load, helping avoid unnecessary battery materials
  • Intelligent charging and battery-management functions are designed to extend battery service life
  • Transformer-based online UPS architecture supports long-term protection of critical equipment and can reduce replacement waste
  • UPS efficiency and generator-optimised operation can reduce energy losses during operation
  • Battery banks and electronic components should be recycled through approved waste and battery-recycling channels at end of life
Warranty Information

A specific EPowerSeries manufacturer warranty period was not published in the sources reviewed. Confirm the applicable warranty, commissioning requirements and service response terms with the authorised Australian distributor before purchase.

Available Now

Available through EPowerSeries and authorised Australian power-protection distributors; supplied as a project or quotation-based product, with battery-bank configuration and site requirements to be confirmed.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
