Trade Discount 25%

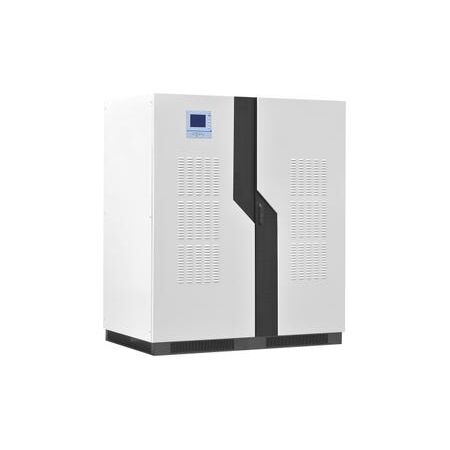

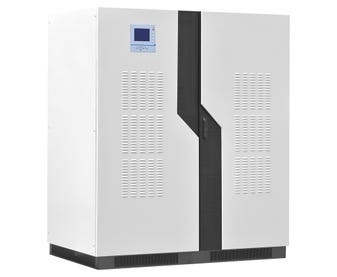

UPS 40kVA Excluding Batteries e-PowerSeries
e-PowerSeries 40kVA UPS features high-capacity power protection, supplied without batteries for external battery banks. Ideal for data centres and critical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EPower EP-40 UPS, 40 kVA Three-Phase UPS, Transformer-Based Online UPS, External-Battery UPS
Technical Specifications
- Model: EP-40
- Rated Capacity: 40 kVA / 36 kW
- UPS Topology: Online double conversion
- Transformer: Galvanic isolation transformer
- Mounting: Tower
- Battery Configuration: External battery bank; batteries excluded
- Output Power Factor: 0.9
- Control Interface: LCD status panel with emergency power-off
- Redundancy: N+X parallel redundancy
- Communications: Multiple communication interfaces and optional network management
- Generator Compatibility: Generator-optimised design
- Operating Temperature: 0°C to 40°C
- Nominal AC Voltage: 380/400/415 V three-phase
- Nominal Frequency: 50/60 Hz
- Dimensions (H x L x W): 1900mm x 805mm x 1160mm
- Weight: 328 kg
Key Features
- 40 kVA capacity for data centres, industrial sites and other critical loads
- Online double-conversion architecture for continuous power conditioning
- Galvanic isolation transformer for electrical isolation and load compatibility
- Supplied without batteries for connection to a separately specified external battery bank
- LCD status panel with emergency power-off function
- Supports N+X parallel redundancy for improved system resilience
- Multiple communication and network-management options
- Generator-optimised operation
Professional Installation Requirements
- Installation, battery-bank connection, commissioning and hardwired electrical work must be performed by an approved UPS technician or suitably licensed electrical contractor. Install in accordance with the manufacturer’s instructions, AS/NZS 3000 and applicable AS 62040 requirements. PSS warranty terms require hardwired products to be commissioned by an approved and authorised PSS technician or contractor.
Applications
- Data centres and server rooms
- Telecommunications and network infrastructure
- Industrial process control
- Healthcare and other critical facilities
- Remote industrial sites
- Emergency and critical-load power protection
Standards & Compliance
- AS 62040.1:2019 – Uninterruptible power systems safety requirements
- AS IEC 62040.2 – Uninterruptible power systems electromagnetic compatibility requirements
- AS IEC 62040.3 – UPS performance and test requirements
- AS/NZS 3000 – Electrical installations and hardwired UPS installation requirements
Environmental Benefits
- External battery architecture allows batteries to be replaced separately from the UPS power electronics, potentially reducing equipment waste
- Transformer-based UPS construction is suited to long service life in demanding critical-power applications
- Supports reliable power delivery to critical loads, helping reduce equipment losses caused by power disturbances
Warranty Information
Standard PSS Distributors warranty: 2-year return-to-base warranty from the original purchase date, subject to the published warranty terms. Hardwired products require approved commissioning for warranty validity.
Available Now
Available through PSS Distributors and authorised Australian distribution channels; contact the distributor for quotation and current availability.
UPS Sizing Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
