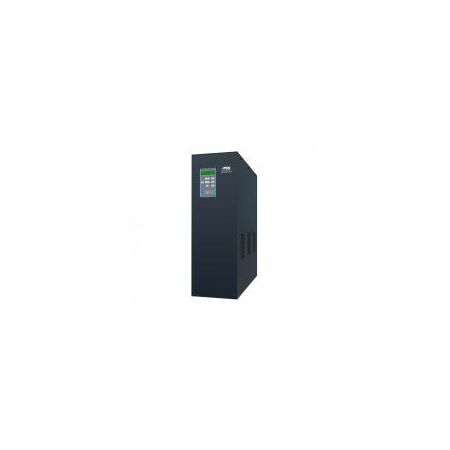

UPS 6kVA for Alinity CCII 2 Instrument PSS
PSS 6kVA UPS for Abbott Alinity CCII 2 instrument configuration features 6kVA capacity and laboratory analyser backup. Ideal for pathology lab power protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Alinity CI UPS, Abbott Alinity Instrument UPS, PSS Alinity UPS, 6kVA Laboratory UPS
Technical Specifications
- Model: ALAB-UPS6-A
- Capacity: 6kVA / 4.8kW
- Application: Abbott Alinity CI double-instrument configuration
- UPS Type: Online UPS with battery backup
- Phase: Single phase
- Battery Configuration: Internal BBGP-804/6 batteries
- Input: 32A
- Main Isolator: 35A
- Output Protection: RCD-protected 32A output
- Output Breakers: 3 x 16A
- 15A Outputs: 3 with isolators and plug tops
- Cable Set: 3m with 16A IEC cable
- Bypass: External manual wall-mount bypass with communications cable
- Isolation: Galvanic isolation transformer
- Load Centre: 8-way load centre with glands
- Weight with Batteries: 142.4kg
- Weight without Batteries: 105kg
- Dimensions (H x L x W): 700mm x 580mm x 230mm
- Weight: 142.4 kg
Key Features
- Designed for Abbott Alinity CI double-instrument laboratory configurations
- Provides continuous backup power during mains interruptions
- Galvanic isolation helps protect connected analysers from surges and electrical disturbances
- Includes an external manual bypass for maintenance and service continuity
- RCD-protected outputs with dedicated 15A isolated outlets
- Online UPS architecture provides stable conditioned power to critical laboratory equipment
- Supplied with internal battery configuration and communications-enabled bypass
Professional Installation Requirements
- Installation, hardwiring, commissioning and bypass integration must be performed by an approved and suitably qualified PSS technician or electrical contractor in accordance with the manufacturer's instructions and AS/NZS 3000. The connected Alinity instruments and UPS load must be verified before commissioning.
Applications
- Abbott Alinity CI double-instrument configurations
- Pathology and clinical diagnostic laboratories
- Immunochemistry and clinical chemistry analysers
- Laboratory power protection and mains-failure backup
- Critical medical and diagnostic equipment installations
Standards & Compliance
- AS 62040 for uninterruptible power systems
- EN 62040-2:2006 for UPS electromagnetic compatibility
- RCM registration N12754
Environmental Benefits
- Helps extend the service life of connected laboratory analysers by reducing damage from power surges, spikes and interruptions
- Supports reduced equipment waste by protecting high-value diagnostic instruments from power-related failure
- Internal lead-acid batteries should be recovered and recycled through an appropriate battery recycling programme at end of life
Warranty Information
Standard PSS warranty is a 2-year return-to-base warranty from the original purchase date, subject to correct installation, commissioning, operation and compliance with PSS requirements. Hardwired products require commissioning by an approved and authorised PSS technician or contractor for warranty validity.
Available Now
Available through authorised PSS distributors in Australia.
UPS Sizing Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
