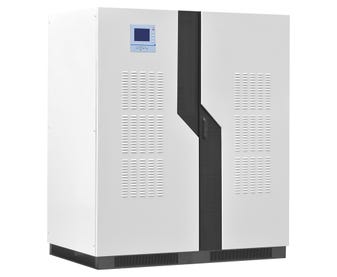

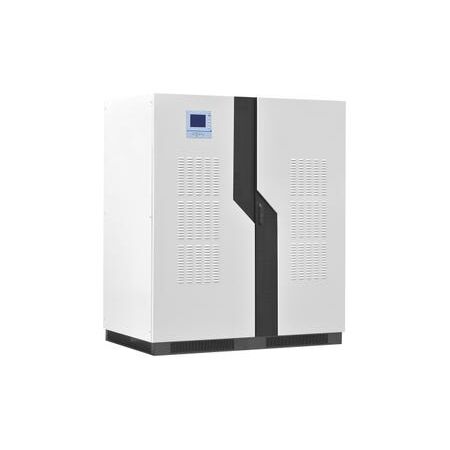

UPS 80kVA Excluding Batteries e-PowerSeries
e-PowerSeries 80kVA UPS features high-capacity power protection, supplied without batteries for external battery banks. Ideal for data centres and critical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EP80 UPS, e-PowerSeries 80 kVA UPS, Three-Phase Online UPS, External Battery UPS
Technical Specifications
- Rated Capacity: 80 kVA / 72 kW
- Topology: True online double conversion
- Phase Configuration: Three-phase input, three-phase output
- Output Power Factor: 0.9 lagging
- Input Voltage: 380/400/415 V AC, three-phase
- Output Voltage: 380/400/415 V AC, three-phase plus neutral and protective earth
- Input Frequency: 50/60 Hz ±5%
- Output Frequency: 50/60 Hz ±0.05% in battery mode
- Output Waveform: Pure sine wave
- Battery Configuration: External battery bank, supplied without batteries
- Nominal Battery Voltage: 384 V DC
- Input Power Factor: ≥0.97 with optional filter
- Output Voltage Regulation: ±1%
- Total Harmonic Distortion: ≤2% on linear load
- Crest Factor: 3:1 maximum
- Overload Capacity: 110% for 60 minutes, 125% for 10 minutes, 150% for 1 minute
- Maximum Efficiency: Up to 92.5%
- Operating Temperature: 0°C to 40°C
- Relative Humidity: 0–95%, non-condensing
- Communications: RS232 and RS485; optional SNMP, EPO and dry contacts
- Parallel Operation: Up to six units
- Noise Level: Less than 68 dB
- Enclosure Protection: IP20
- Dimensions (H x L x W): 1600mm x 880mm x 760mm
- Weight: 575 kg
Key Features
- Protects data centres, servers and other critical loads from power interruptions and disturbances
- True online double-conversion design provides regulated, isolated power to connected equipment
- External battery configuration allows runtime and battery capacity to be specified for the installation
- Transformer-based architecture supports demanding and non-linear loads
- Three-phase input and three-phase output for commercial and industrial power systems
- Supports parallel operation for capacity expansion or redundancy
- Smart battery management with flexible battery configuration
- Pure sine-wave output with static bypass functionality
- LCD status monitoring for voltage, frequency, load, battery and UPS operating conditions
Professional Installation Requirements
- Installation, connection to fixed wiring, external battery-bank assembly and commissioning must be completed by a licensed electrical contractor or suitably qualified UPS technician in accordance with AS/NZS 3000, the manufacturer's installation instructions and applicable site electrical requirements.
Applications
- Data centres and server rooms
- Telecommunications infrastructure
- Industrial control systems
- Medical and laboratory equipment
- Manufacturing and process-control systems
- Commercial buildings with critical electrical loads
- Networking, storage and other IT equipment requiring conditioned backup power
Standards & Compliance
- AS 62040.1:2019 for UPS safety requirements
- AS IEC 62040.2:2019 for UPS electromagnetic compatibility requirements
- AS IEC 62040.3:2012 for UPS performance and test requirements
- AS/NZS 3000:2018 for electrical installation, wiring, isolation, earthing and commissioning
Environmental Benefits
- External battery-bank design allows batteries to be replaced or upgraded separately from the UPS power electronics, reducing unnecessary equipment waste
- High-efficiency operation can reduce operating losses and associated cooling demand compared with less efficient UPS systems
- Long service life and parallel redundancy options can reduce premature replacement of the complete power-protection system
- Metal cabinet and electronic components may be recoverable through appropriate electrical and metal recycling streams at end of life
Warranty Information
Manufacturer warranty applies subject to the sale agreement, authorised distribution channel, installation requirements and commissioning conditions. Confirm the applicable warranty period and coverage with the authorised Australian distributor before purchase.
Available Now
Available through the e-PowerSeries brand and authorised commercial UPS distributors, subject to project configuration, external battery-bank selection and lead time.
