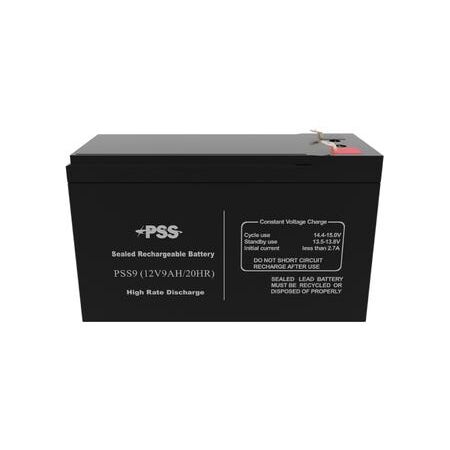

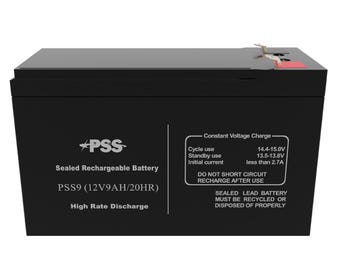

UPS AGM Battery 12V 9Ah C20 PSS
PSS UPS AGM battery features 12V, 9Ah C20 capacity, and sealed valve regulated lead acid construction. Ideal for UPS replacement and backup power banks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PSS9 UPS Battery, 12V 9Ah VRLA Battery, Sealed Lead-Acid UPS Battery, AGM Backup Battery
Technical Specifications
- Battery Type: AGM sealed valve-regulated lead-acid (VRLA)
- Nominal Voltage: 12 V
- Rated Capacity: 9 Ah at C20 rate
- Design Life: 5 years
- Construction: Maintenance-free, sealed and valve-regulated
- Terminal Type: F2 Faston terminal
- Self-Discharge: Low self-discharge design
- Typical Dimensions: 151 x 65 x 94 mm, excluding terminal height
- Dimensions (H x L x W): 94mm x 151mm x 65mm
- Weight: 2.5 kg
Key Features
- Designed for UPS replacement and standby power applications
- Absorbent Glass Mat technology immobilises the electrolyte
- Sealed, spill-resistant and maintenance-free construction
- Low self-discharge for improved storage performance
- Compact standard 12V 9Ah form factor
- Suitable for backup power banks, emergency lighting, fire alarm and security systems
Professional Installation Requirements
- Battery replacement should be performed by a competent person or qualified technician with the UPS isolated from mains power. Follow the UPS manufacturer's battery replacement and charging instructions, and observe correct polarity and safe handling procedures.
Applications
- UPS battery replacement
- Backup power banks
- Emergency lighting systems
- Fire alarm systems
- Security and access-control systems
- Telecommunications and standby power equipment
Standards & Compliance
- AS/NZS 4029.2:2000 is the applicable Australian/New Zealand standard for stationary valve-regulated lead-acid batteries; product-specific compliance documentation was not located.
Environmental Benefits
- Lead-acid batteries are recyclable through approved battery recycling channels
- Maintenance-free sealed construction reduces electrolyte handling and servicing requirements
- Low self-discharge can reduce replacement frequency during standby use
- Suitable for extended service in UPS and standby systems, helping reduce battery waste
Warranty Information
PSS Distributors' standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to operating, storage, installation and maintenance conditions. Batteries must be operated within specification and recharged at least every three months during storage.
Available Now
Available through PSS Distributors and authorised Australian distributors; confirm current stock and lead time before ordering.
