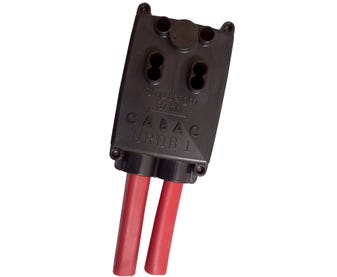

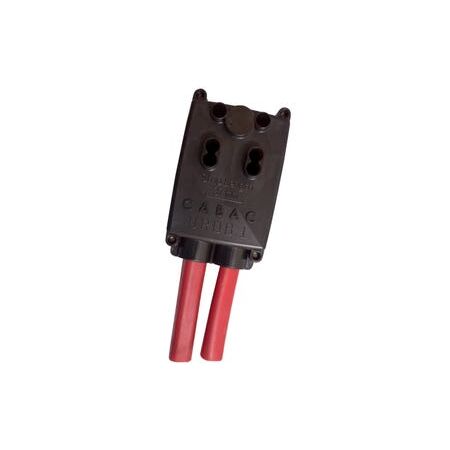

URD Bolted System 2Way Pillar Kit | 90-120mm2 | Shear Head Technology | Bi-Metal Lug | Finger-Safe Cover by Cabac
The Cabac URD Bolted System 2Way Pillar Kit for 90-120mm2 conductors offers a quick, easy, and reliable solution for looped pillar electrical connections with patented shear head technology and durable finger-safe covers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: URD Bolted System 2Way Pillar Kit 90-120mm2
Brand: Cabac
SKU: CMPBL2-120
Alternatively Known As: URD Bolted Connection Kit, Double Pillar Kit, 2 Way Pillar Connector, Electrical Pillar Termination Kit
Technical Specifications
- Suitable for 90-120 sq mm stranded and solid conductors
- Patented lug with shear head technology for secure connections without crimping
- Inbuilt terminal block with 6 range-taking tunnels, max capacity 50mm
- Bi-metal lug: high grade electrical aluminium, copper and tin plated
- Cover made from glass-filled nylon, finger-safe and 1000 volt-proof
- Meets full requirements of AS4325 for conductor connections
- Dimensions (H x L x W): 150mm x 100mm x 200mm
- Weight: 1.5 kg
Key Features
- Two way pillar kit using the URD Bolted Connection System for 90 to 120 sq. mm mains conductor
- Designed to make looped pillar connection systems quick and easy
- Kit contains connection items for 3 phases and neutral
- Shear head technology connection principle eliminates need for crimping tools
- Patented lug design that is range taking and accepts multiple cables
- True bi-metal system with aluminium lug copper and tin plated for compatibility with copper and aluminium cables
- Finger-safe, 1000 volt-proof cover made from tough glass-filled nylon
Professional Installation Requirements
- Installation requires basic hand tools including Allen keys for shear bolts, cable connection spanners, and a screwdriver. Recommended to be installed by a qualified electrician to ensure compliance and safety.
Applications
- Electrical looped pillar connection systems
- Mains conductor connections for 90 to 120 sq mm cables
- Industrial and commercial electrical installations requiring secure pillar terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 for conductor connections
Environmental Benefits
- Eliminates need for crimping tools reducing energy and material waste
- Durable materials extend product life and reduce replacement frequency
- Bi-metal design supports use with both copper and aluminium cables, optimizing resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac URD Bolted System 2Way Pillar Kit 90-120mm2 is available now for immediate purchase. Ideal for electrical looped pillar connection systems in commercial and industrial applications.
