URD Lug 240-300sq mm | Shear Bolt Technology | Tin-Plated for Corrosion Resistance | Easy Installation by Cabac
The Cabac URD Lug 240-300sq mm Plain for 3 Way is designed to simplify looped pillar connection systems by eliminating many components and crimping requirements, featuring shear bolt technology and an in-built terminal block for efficient electrical connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

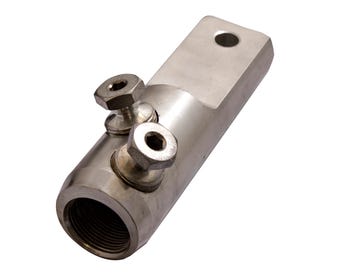

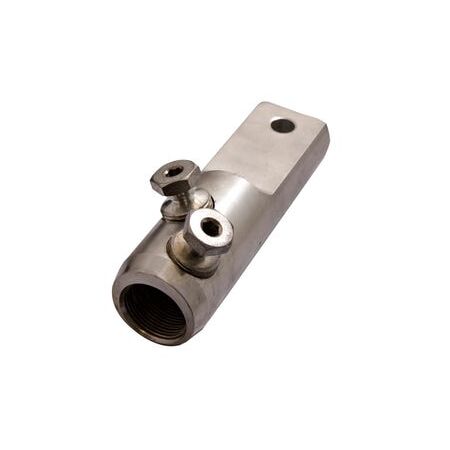

Product Name/Title: URD Lug 240-300sq mm Plain for 3 way
Brand: Cabac
SKU: BALURD240-2
Alternatively Known As: URD Lug 3 Way Connector, URD Loop Pillar Lug, Shear Bolt URD Lug, Aluminium Alloy URD Lug
Technical Specifications
- Suitable for conductor sizes 240-300 sq mm
- Manufactured from high strength aluminium alloy
- Tin-plated for corrosion resistance and compatibility with copper and aluminium
- Installation requires only two allen keys
- Tested to AS4325 standard in NATA laboratory
- Supports stranded, circular stranded, and solid sector cables
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Proven shear bolt technology eliminates need for crimp tools and operator skills
- In-built terminal block with range taking tunnels for up to 50mm conductors
- Separate tunnels for street lighting conductor connections
- Connectors bolted back to back with two, three, or four way bus bars for easy branch off
- Main looped conductors can be disconnected during servicing without loss of service connection
- Tin plated for compatibility with copper and aluminium conductors
- Suitable for stranded and solid conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with shear bolt technology and AS/NZS wiring standards.
Applications
- Looped pillar connection systems in electrical distribution
- Service connections for street lighting and main conductors
- Electrical power connectivity in residential and commercial pillars
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Tin plating allows mixing of conductor materials reducing material waste
- Durable aluminium alloy construction extends product life and reduces replacement frequency
Warranty Information
Warranty details available upon request from Cabac; typically includes coverage against manufacturing defects.
Available Now
The Cabac URD Lug 240-300sq mm Plain for 3 Way is available for immediate purchase, ideal for electrical distribution pillar connections and service loop systems.
