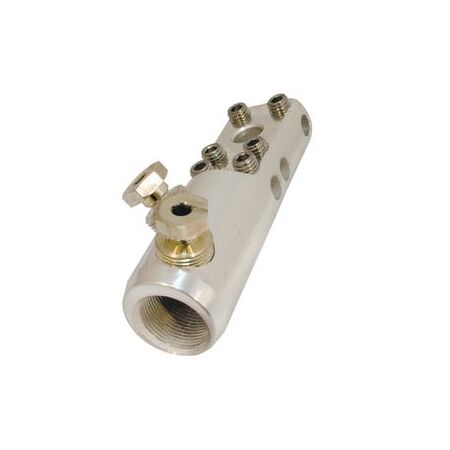

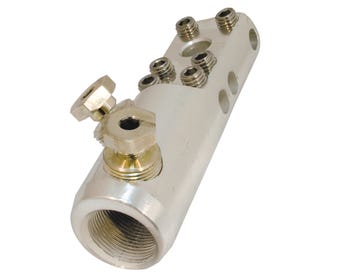

URD Lug and Terminal Block 120mm² | Shear Bolt Technology | Tin-Plated Aluminium | Easy Installation by Cabac
The Cabac URD Lug and Terminal Block 120mm² is designed for quick and easy looped pillar connection systems, eliminating many components and crimping requirements. It features shear bolt technology and an in-built terminal block for versatile conductor connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: URD Lug and Terminal Block 120mm2
Brand: Cabac
SKU: BALURD120
Alternatively Known As: URD Lug, URD Terminal Block, Looped Pillar Connector, Shear Bolt Lug, Aluminium Alloy Terminal Block
Technical Specifications
- Material: High strength aluminium alloy, tin-plated
- Conductor Size Accommodation: Up to 50mm conductors for service connections
- Connection Technology: Shear bolt technology
- Compatible Conductors: Copper and aluminium, stranded and solid
- Installation Tools Required: Two allen keys
- Tested to AS4325 standard in CABAC's NATA laboratory
- Dimensions (H x L x W): 50mm x 150mm x 120mm
- Weight: 0.5 kg
Key Features
- Proven shear bolt technology eliminates need for crimp tools and operator skills
- In-built terminal block with range taking tunnels accommodating up to 50mm conductors
- Two separate tunnels allow connection of street lighting conductors
- Connectors bolted back to back with two or three/four way bus bars for easy branch off connections
- Main looped conductors can be disconnected during servicing without loss of service connection
- Tin plated connector suitable for copper and aluminium conductors
- Compatible with both stranded and solid conductors
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Electrical looped pillar connection systems
- Service connections for street lighting conductors
- Branch off connections in electrical distribution pillars
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for multiple components, minimizing material waste
- Tin plating allows mixing of conductor materials, promoting reuse and compatibility
- Simplifies installation reducing energy and resource consumption during setup
Warranty Information
Warranty details available upon request from Cabac; typically includes coverage against manufacturing defects.
Available Now
The Cabac URD Lug and Terminal Block 120mm² is available now for immediate purchase. Ideal for electrical looped pillar connection systems in residential and commercial applications.
