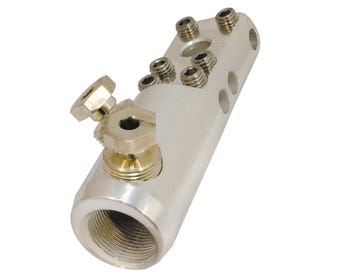

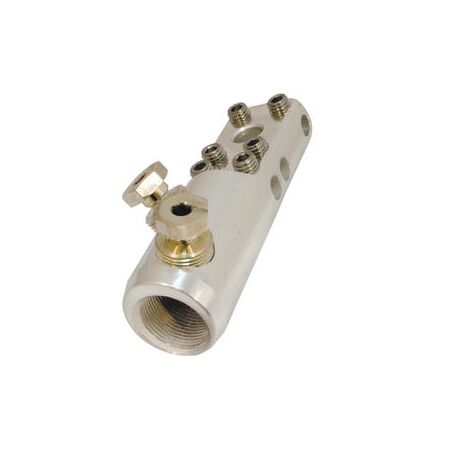

URD Lug and Terminal Block 240-300sq mm | Shear Bolt Technology | Tin-Plated Aluminium | Versatile Connections by Cabac
The Cabac URD Lug and Terminal Block 240-300sq mm is designed for quick and easy looped pillar connection systems, eliminating many components and crimping requirements. It features shear bolt technology and an in-built terminal block for versatile conductor connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: URD Lug and Terminal Block 240-300sq mm
Brand: Cabac
SKU: BALURD240
Alternatively Known As: URD Lug, URD Terminal Block, Pillar Terminal Block, Shear Bolt Lug, Aluminium Lug Connector
Technical Specifications
- Conductor Size Range: 240-300 sq mm
- Material: High strength aluminium alloy, tin-plated
- Connection Type: Shear bolt technology
- Terminal Block: In-built with range taking tunnels up to 50mm conductors
- Compatible Conductors: Copper and aluminium, stranded and solid
- Installation Tools Required: Two allen keys
- Tested to AS4325 standard in CABAC's NATA laboratory
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Proven shear bolt technology eliminates the need for crimp tools and operator skills
- In-built terminal block with range taking tunnels accommodating up to 50mm conductors
- Separate tunnels for street lighting conductor connections
- Connectors bolted back to back with two or three/four way bus bars for easy branch off connections
- Main looped conductors can be disconnected during servicing without loss of service connection
- Tin plated connector suitable for copper and aluminium conductors
- Compatible with stranded and solid conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with shear bolt technology and AS/NZS 3000 wiring rules to ensure safety and compliance.
Applications
- Looped pillar connection systems in electrical distribution
- Service connections for street lighting and other utilities
- Suitable for use with copper and aluminium conductors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Tin plating allows mixing of conductor materials reducing material waste
- Durable aluminium alloy construction extends product life and reduces replacement frequency
- Eliminates need for crimp tools reducing energy and resource use in installation
Warranty Information
Warranty details available upon request from Cabac; typically includes coverage against manufacturing defects.
Available Now
The Cabac URD Lug and Terminal Block 240-300sq mm is available for immediate purchase, ideal for electrical distribution looped pillar connection systems.
