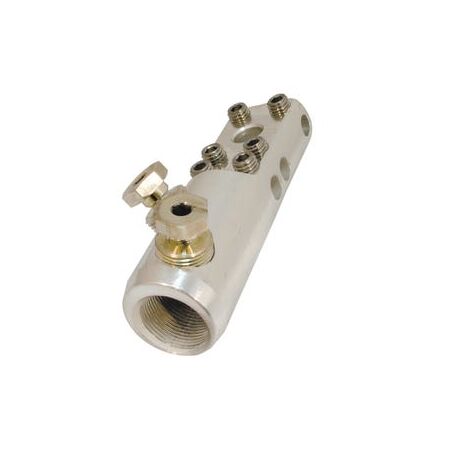

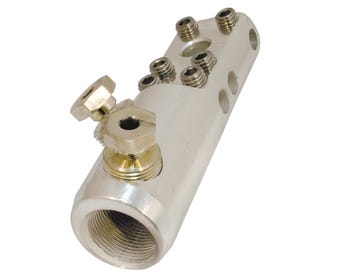

URD Lug and Terminal Block 95mm2 | Shear Bolt Technology | Tin-Plated Aluminium | Easy Installation by Cabac
The Cabac URD Lug and Terminal Block 95mm2 is designed to simplify looped pillar connection systems by eliminating many components and crimping requirements. It features shear bolt technology and an in-built terminal block for efficient electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: URD Lug and Terminal Block 95mm2
Brand: Cabac
SKU: BALURD95
Alternatively Known As: URD Lug, URD Terminal Block, Pillar Connection Lug, Shear Bolt Lug, Electrical Terminal Block 95mm2
Technical Specifications
- Material: High strength aluminium alloy, tin-plated
- Conductor Size Capacity: Up to 95mm2 main conductor, up to 50mm service conductors
- Connection Type: Shear bolt technology
- Compatible Conductors: Copper and aluminium, stranded and solid
- Installation Tools: Requires only two allen keys
- Tested to AS4325 standard in CABAC's NATA laboratory
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- Main conductor connected using proven shear bolt technology, eliminating the need for crimp tools and operator skills
- In-built terminal block with range taking tunnels accommodating up to 50mm conductors for service connections
- Two separate tunnels allow connection of street lighting conductors
- Connectors bolted back to back with two or three/four way bus bars for easy branch off connections
- Main looped conductors can be disconnected during servicing without loss of service connection
- Tin plated connector suitable for copper and aluminium conductors
- Compatible with both stranded and solid conductors
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Looped pillar connection systems
- Service connections for electrical conductors
- Street lighting conductor connections
- Electrical pillar terminations and accessories
Standards & Compliance
- Complies with AS4325 – Electrical connectors for underground residential distribution systems
Environmental Benefits
- Tin plating allows mixing of conductor materials reducing waste
- Eliminates need for crimp tools reducing tool consumption and energy use
- Durable aluminium alloy construction extends product life and reduces replacement frequency
Warranty Information
Warranty details available upon request from Cabac.
Available Now
The Cabac URD Lug and Terminal Block 95mm2 is available now for immediate purchase. Ideal for electrical pillar terminations and looped pillar connection systems.
