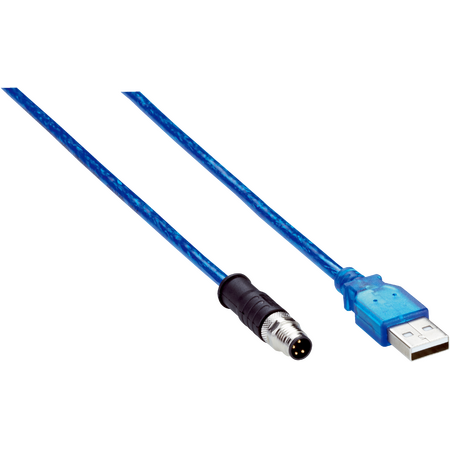

USB 2.0 M8 to USB-A Cable | IP67 Rated | 1.5m Length | Shielded | by SICK
The USB 2.0 M8 to USB-A cable is designed for reliable data transfer in industrial automation and sensor connectivity. With a robust IP67 rating, it ensures protection against dust and water, making it perfect for harsh environments. Featuring a 1.5m length and shielded construction, this cable supports a current loading of 4 A and operates within a temperature range of -30°C to +90°C, ensuring optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 to USB-A cable, USB 2.0 industrial cable, SICK USB connector cable
Technical Specifications
- Connection type head A: Male connector, M8, 4-pin, straight
- Connection type head B: Male connector, USB-A, 4-pin, straight
- Connector material: TPU
- Cable: 1.5 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Shielding: Shielded
- Reference voltage: ≤ 30 V
- Current loading: 4 A
- Signal type: USB 2.0
- Enclosure rating: IP67
- Operating temperature: -30 °C to +90 °C
- Contamination rating: 3
- Dimensions (H x L x W): 8mm x 1500mm x 8mm
- Weight: 0.1 kg
Key Features
- Male connector, M8, 4-pin, straight on head A
- Male connector, USB-A, 4-pin, straight on head B
- Shielded cable for signal integrity
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +90°C
- Current loading capacity of 4 A
- Cable length of 1.5 meters
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensor connectivity
- Data transfer between USB 2.0 devices and M8 connector equipment
- Use in harsh environments requiring IP67 rated cables
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable PVC and TPU materials extend product life reducing waste
- Shielding reduces electromagnetic interference improving device efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM8U24-015VG3MUSA USB 2.0 M8 to USB-A Cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
