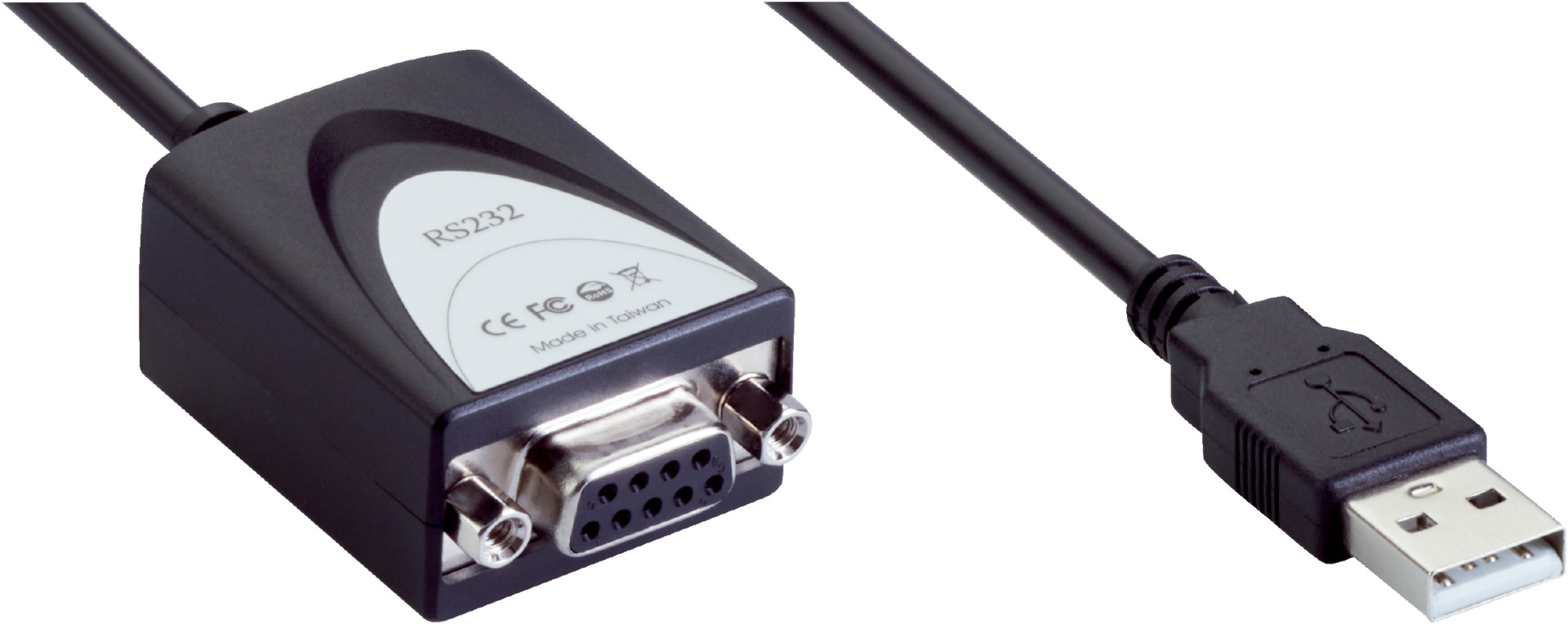

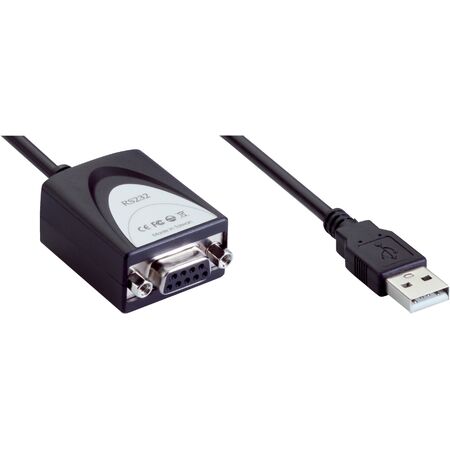

USB 2.0 to RS232 Converter | +5 V at Pin 9 | 1.8 m Cable Length | by SICK
The USB 2.0 to RS232 converter is designed for seamless communication between USB and RS232 devices, featuring a +5 V power supply at pin 9. With a 1.8 m cable length, it's perfect for industrial automation systems and connecting legacy devices to modern USB ports. This plug-and-play device ensures easy installation and reliable data transfer rates from 300 Baud to 921.6 KBaud.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: RS232 female connector, 9-pin, Serial (+5 V at pin 9)
- Connection type head B: Male connector, USB 2.0
- Cable length: 1.8 m
- Weight: 150 g
- Shielding: Unshielded
- Signal type: RS-232, USB
- Data transfer rate: 300 Baud to 921.6 KBaud
- Operating temperature: 0 °C to +55 °C (stationary position)
- Dimensions (H x L x W): 20mm x 1800mm x 60mm
- Weight: 0.15 kg
Key Features
- Conversion from USB 2.0 to RS-232 with +5 V at pin 9
- RS232 female connector, 9-pin, Serial with +5 V at pin 9
- Male USB 2.0 connector
- 1.8 m cable length
- Supports data transfer rates from 300 Baud to 921.6 KBaud
- Unshielded cable
Professional Installation Requirements
- No professional installation required; plug-and-play device suitable for user installation.
Applications
- Industrial automation systems requiring USB to RS232 serial communication
- Connecting legacy RS232 devices to modern USB ports
- Data transfer and communication in control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables reuse of existing RS232 devices, reducing electronic waste
- Supports efficient data communication reducing need for additional hardware
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK USB 2.0 to RS232 converter is available now for immediate purchase. Ideal for industrial and commercial applications requiring USB to serial communication.
