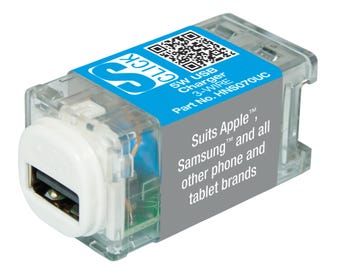

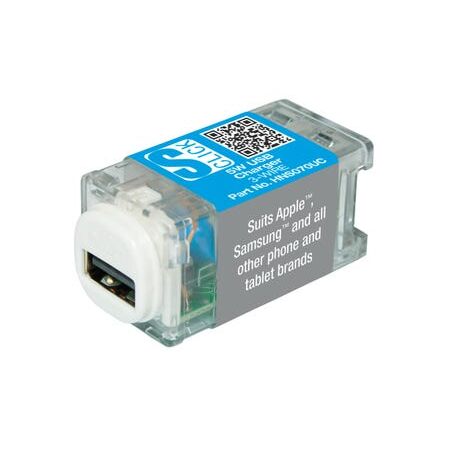

USB Charger Mech 5W 5.2V 1A 3-Wire S-Click
S-Click USB charger mech features 5W output, 5.2V 1A and 3-wire connection. Ideal for adding USB charging to standard wall plates.
Sign in
Please login to continue to your account.
Alternatively Known As: S-Click USB Charger Mech, CABAC HNS070UC USB Charger, In-Wall USB Charger Mechanism, Type-A USB Wall Charger
- Model: HNS070UC
- Output: 5.2V DC, 1A, 5W
- Connection: 3-wire; neutral required
- USB Interface: Type-A
- Input: 230V AC, 50Hz mains supply
- Standby Power: 50mW
- Orientation: Horizontal
- Colour: White
- Wall Plate Compatibility: CABAC, Clipsal, HPM and Legrand-style wall plates
- Compatible Plates: Clipsal 2000 Series, C2000, Saturn Data, Slimline Clipsal Standard, HPM Excel and Excel Life
- Maximum Wall Plate Capacity: Up to six charger mechanisms
- Protection: Overcurrent protection and cable-loss compensation
- Surge Rating: 2.5kV
- Certification: AS/NZS 60950-1, CISPR22 and AS/NZS 4665 certified
- Dimensions (H x L x W): 37mm x 22mm x 44mm
- Weight: 0.1 kg
- Provides dedicated USB charging from a wall plate without a plug-pack adaptor
- Suitable for smartphones, tablets and other portable USB-chargeable devices with internal batteries
- Designed for overnight charging using a 1A output
- Compact mechanism allows multiple units to be installed in one wall plate
- White bezel included; compatible coloured bezels are available
- Solid-state charger design with cable-loss compensation
- Not intended as a continuous power supply for devices without an internal battery
- This unit connects to fixed 230V wiring and must be installed by a licensed electrical contractor or suitably qualified person in accordance with the manufacturer's instructions and AS/NZS 3000 Wiring Rules. A neutral connection is required. ([cabac.co.nz](https://www.cabac.co.nz/p/lighting/wiring-devices/usb-chargers/hns070uc))
- Residential wall plates and kitchen benchtops
- Office, meeting room and classroom charging points
- Hospitality, dormitory and shared accommodation charging installations
- Charging smartphones, tablets, eBook readers, GPS units, action cameras and digital cameras
- Retrofit installations using compatible Clipsal, HPM, CABAC or Legrand-style wall plates
- AS/NZS 60950-1: Information technology equipment safety certification stated by the manufacturer
- CISPR22: Electromagnetic compatibility certification stated by the manufacturer
- AS/NZS 4665: Certification stated by the manufacturer
- AS/NZS 3000:2018: Fixed-wiring installation requirements apply; USB charging socket-outlets on faceplates are recognised as acceptable. ([cabac.co.nz](https://www.cabac.co.nz/p/lighting/wiring-devices/usb-chargers/hns070uc))
- Low standby consumption of approximately 50mW reduces idle energy use
- Integrated wall charging reduces the need for separate plug-pack adaptors and associated packaging
- Solid-state construction supports extended service life and reduced replacement waste
- Enables efficient overnight charging at a moderate 1A output, helping avoid unnecessary high-power charging
12-month warranty against manufacturing and material defects from the invoice date to the initial purchaser, subject to correct installation, maintenance and operation within specification. Warranty is conditional on installation by a licensed electrical contractor. ([shop.cnw.com.au](https://shop.cnw.com.au/medias/hns070uc.pdf?context=bWFzdGVyfHJvb3R8NDY1MDI0fGFwcGxpY2F0aW9uL3BkZnxhRGhrTDJneE5pODVPRFExTURZeU9UVTVNVE0wTDJodWN6QTNNSFZqTG5Ca1pnfGYyMDQ1NDcxZGVkZTliNDUwODNhNDgwNjkyMjkyZDExOWVhYjYyYjczMmY1N2E2Yjk3ZmNjODAwMWI4Y2QxYjY&utm_source=openai))
Available through S-Click/CABAC and authorised Australian electrical wholesalers and distributors.
