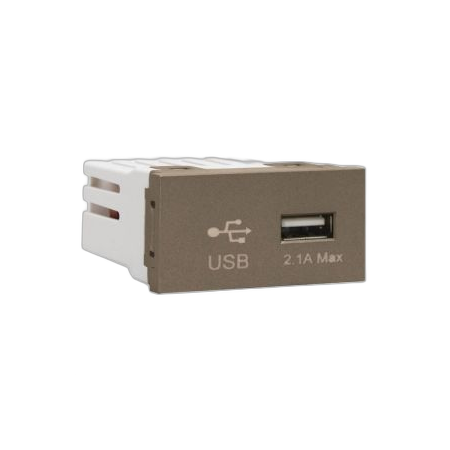

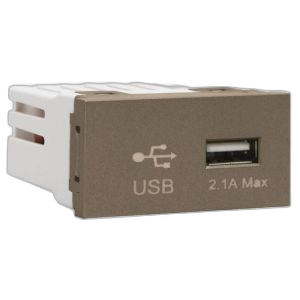

USB Charger Module Type-A 1 Module Bronze MajorTech
MajorTech USB charger module features a Type-A port, single module size and grid mount fit. Ideal for device charging at power points.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi 3 Type-A USB Socket Module, 3VM209BZ USB Charging Module, Modular USB Wall Charger
Technical Specifications
- Model: 3VM209BZ
- Module Type: Single-module modular socket charger
- USB Port: 1 x USB Type-A
- USB Output: 5V DC, 2.1A maximum
- Output Power: 10W maximum
- Input Voltage: 220–240V AC
- No-Load Consumption: 0.1W maximum
- Colour: Bronze
- Installation System: VETi 3 modular grid
- Wall Box Compatibility: Up to 3 modules in a 100mm x 50mm wall box or 6 modules in a 100mm x 100mm wall box
- Safety Approval: Tested to IEC 62368-1 and approved under a Letter of Authority
- Protection: Built-in overcharge protection for connected devices
- Dimensions (H x L x W): 25mm x 35mm x 25mm
- Weight: 0.1 kg
Key Features
- Single Type-A USB charging port for installation into compatible VETi 3 modular grids
- Provides up to 10W charging at 5V and 2.1A
- Designed for compatible USB-powered phones, tablets and other portable devices
- Built-in protection helps reduce the risk of connected battery overcharging
- Bronze finish for coordinated power-point installations
- Flexible casing clips allow removal from the fixing frame
- Suitable for residential and commercial charging points
Professional Installation Requirements
- Mains electrical installation should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. Confirm that the complete assembly, including the mounting frame and cover plate, is approved for the intended Australian installation before use.
Applications
- Residential USB charging points
- Commercial and office power-point installations
- Hospitality, accommodation and retail fit-outs
- Bedside, desk and work-area charging outlets
- VETi 3 modular switch and socket systems
Standards & Compliance
- AS/NZS 62368.1: Relevant Australian/New Zealand safety standard for information and communication technology equipment; the manufacturer literature cites IEC 62368-1 approval and local RCM/SAA suitability should be confirmed before Australian installation
- AS/NZS 3000: Applicable wiring and installation requirements for fixed mains-connected electrical equipment
Environmental Benefits
- Low maximum no-load consumption of 0.1W helps limit standby energy use
- Built-in overcharge protection can help extend the service life of connected rechargeable batteries
- Integrated wall charging reduces reliance on separate plug-in charging adapters and associated packaging
- Modular construction allows replacement of the individual charger module rather than the complete grid assembly
Warranty Information
MajorTech lists a 15-year extended warranty for VETi 3 products, subject to the manufacturer's warranty conditions, registration requirements and exclusions.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock and local approval requirements.
