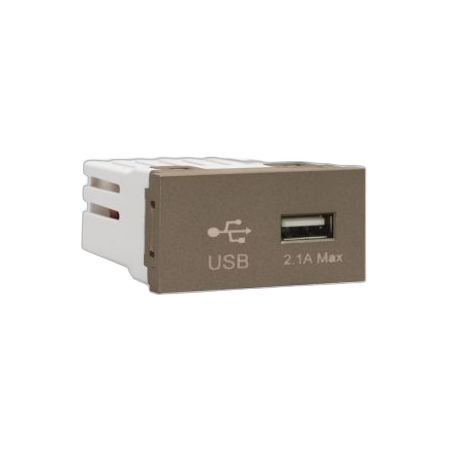

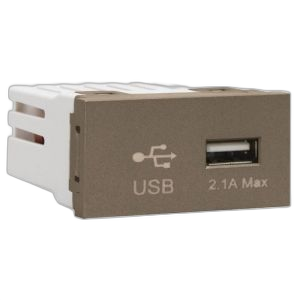

USB Charger Module Type-A 1 Module Grey MajorTech
MajorTech USB charger module features a Type-A port, single module size and grid mount fit. Ideal for device charging at power points.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech VETi 3 AURA USB-A Charging Module, Type-A USB Socket Module, Modular USB Charger
Technical Specifications
- Brand: Major Tech
- Range: VETi 3 AURA
- Module Size: 1 module
- Colour: Grey/Graphite
- USB Port: Type-A
- Output Power: 10W
- USB Output: 5V DC, 2.1A
- Input Voltage: 220–240V AC
- Maximum No-Load Consumption: 0.1W
- Mounting: VETi modular grid and compatible fixing frames
- Protection: Built-in overcharge protection
- Product Approval: IEC 62368-1 and LOA
- Dimensions (H x L x W): 50mm x 25mm x 32mm
- Weight: 0.1 kg
Key Features
- Single Type-A USB charging port
- Designed for installation in VETi modular switch and socket assemblies
- Suitable for charging compatible USB devices rated at 5V and up to 2.1A
- Up to three modules can be installed in a compatible 100mm x 50mm wall box
- Up to six modules can be installed in a compatible 100mm x 100mm wall box
- Flexible casing clips allow removal from the fixing frame
- Built-in charging protection helps reduce the risk of device battery overcharging
Professional Installation Requirements
- Mains-connected equipment must be installed by a licensed electrician in accordance with AS/NZS 3000 and local electrical requirements.
Applications
- Residential device charging points
- Commercial offices and workstations
- Hotels, retail spaces and hospitality installations
- VETi 3 modular switch and socket assemblies
- Replacement or upgrade of compatible single-module wall outlets
Standards & Compliance
- AS/NZS 3000:2018 Wiring Rules — applicable to fixed electrical installation and connection requirements
- IEC 62368-1 and LOA are stated by the manufacturer; specific AS/NZS product certification was not identified for this 10W module
Environmental Benefits
- Maximum no-load consumption of 0.1W helps reduce standby energy use
- Built-in charging protection may help extend connected device battery life
- Modular construction allows individual replacement of the charger module rather than replacing the complete wall assembly
- Long service life and replaceable modular design can reduce installation waste
Warranty Information
Major Tech lists VETi 3 products under a 15-year extended warranty policy, subject to applicable registration and policy conditions. The general Major Tech standard product warranty is 6 months where the extended warranty does not apply. ([veti.co.za](https://www.veti.co.za/shipping-returns?utm_source=openai))
Available Now
Available through Major Tech and authorised electrical distributors in Australia and other supported markets.
