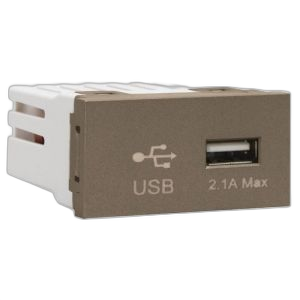

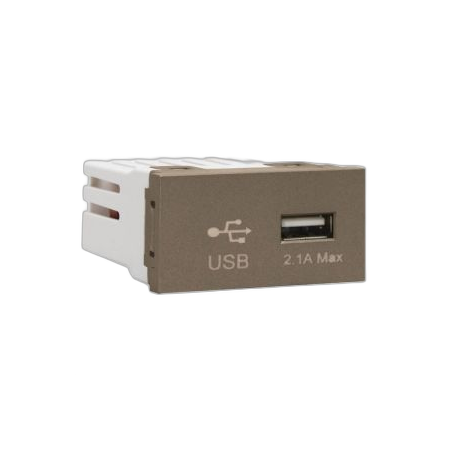

USB Charger Module Type-A 1 Module TM MajorTech
MajorTech USB charger module features a Type-A port, single module size and grid mount fit. Ideal for device charging at power points.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi 3 USB-A Charging Module, 3VM209BZ USB Socket Module, Single-Module USB Wall Charger
Technical Specifications
- Model: 3VM209BZ
- Module Type: VETi 3 AURA single module
- USB Port: One Type-A port
- Output Power: 10W
- USB Output: 5V, 2.1A maximum
- Input Voltage: 220–240V AC
- No-Load Consumption: 0.1W maximum
- Safety Approval: IEC 62368-1 tested; Letter of Authority listed
- Colour/Finish: Bronze
- Mounting: Compatible VETi modular fixing frames and cover plates
- Dimensions (H x L x W): 35mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Single-module format for modular wall-grid installation
- Provides one USB Type-A charging port at 5V and up to 2.1A
- 10W charging output for compatible USB devices
- Built-in charging protection helps reduce battery overcharging risk
- Low standby consumption of 0.1W maximum
- Flexible casing clips support removal from the compatible fixing frame
- Available as part of the VETi 3 modular switch and socket system
Professional Installation Requirements
- Mains-powered equipment must be installed, connected and tested by a licensed electrician in accordance with applicable Australian wiring rules and local requirements. Confirm product suitability for the intended Australian installation before use.
Applications
- Residential USB charging points
- Commercial offices and workspaces
- Hospitality and accommodation installations
- Bedside, kitchen and study charging locations
- Modular VETi 3 wall-grid installations
Environmental Benefits
- Low no-load consumption of up to 0.1W helps reduce standby energy use
- Built-in charging protection can help extend connected battery service life
- Modular construction allows the charger module to be replaced independently of the complete wall assembly, potentially reducing installation waste
- Durable modular construction may reduce replacement frequency over the product service life
Warranty Information
MajorTech products carry a standard six-month warranty from purchase or delivery, subject to the manufacturer’s warranty terms. VETi USB sockets may also be covered by an extended warranty where specifically registered and applicable to the product configuration; confirm coverage with the supplier.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock and regional availability.
