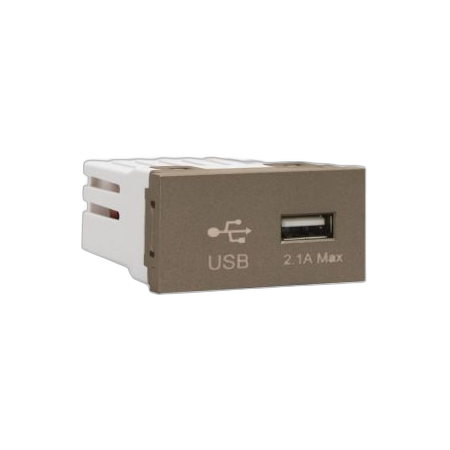

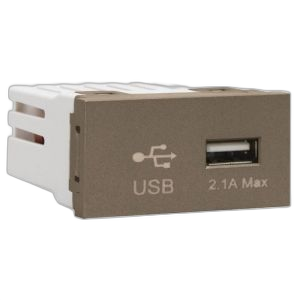

USB Charger Module Type-A 1 Module White MajorTech
MajorTech USB charger module features a Type-A port, single module size and grid mount fit. Ideal for device charging at power points.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi 3 10W USB-A Socket Module, Major Tech 3VM209WT, Modular USB Charging Outlet
Technical Specifications
- USB Port: Type-A
- Output Power: 10W
- USB Output: 5V, 2.1A
- Input Voltage: 220–240V AC
- No-Load Consumption: Maximum 0.1W
- Mounting Format: Single module
- Compatibility: VETi 3 modular fixing frames and compatible wall boxes
- Standards and Approvals: IEC 62368-1, LOA
- Colour: White
- Dimensions (H x L x W): 60mm x 50mm x 25mm
- Weight: 0.1 kg
Key Features
- Single-module Type-A USB charging outlet
- Designed for installation into compatible VETi modular power-point systems
- Charges compatible USB devices rated at 5V and up to 2.1A
- Built-in protection designed to help prevent battery overcharging
- Flexible casing clips allow removal from the fixing frame
- Up to three modules can fit in a compatible 100mm x 50mm wall box
- Up to six modules can fit in a compatible 100mm x 100mm wall box
- Low maximum no-load energy consumption of 0.1W
Professional Installation Requirements
- Mains electrical installation should be completed by a licensed electrician in accordance with applicable Australian wiring rules, manufacturer instructions and local electrical regulations.
Applications
- USB charging at residential power points
- USB charging in offices, hotels and commercial premises
- Modular electrical installations using VETi 3 fixing frames
- Charging compatible smartphones, tablets and other USB-powered devices
Environmental Benefits
- Low maximum no-load consumption of 0.1W helps reduce standby energy use
- Overcharge protection is designed to help extend connected battery service life
- Modular construction allows the charging unit to be replaced without replacing the complete wall plate
- Compact reusable module format can reduce material waste during electrical upgrades
Warranty Information
Major Tech standard product warranty: 6 months from purchase or delivery, subject to the manufacturer's warranty terms and exclusions. Proof of purchase is required.
Available Now
Available through MajorTech and authorised electrical distributors, subject to distributor stock levels.
