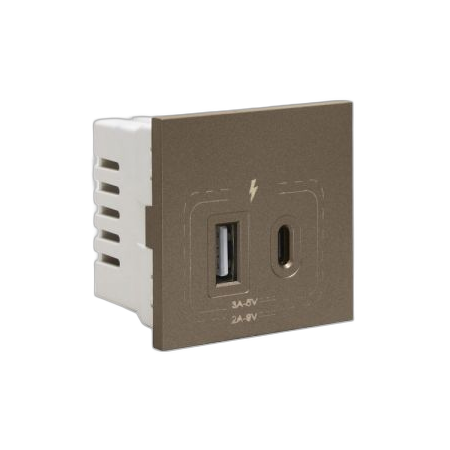

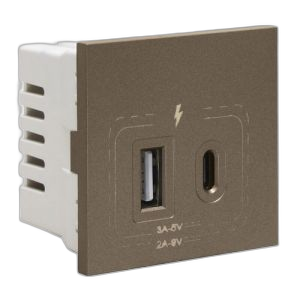

USB Charger Module USB-A and USB-C 18W 2 Module Bronze MajorTech
MajorTech USB charger module features USB-A and USB-C ports, 18W output and two module size. Ideal for fast device charging at power points.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 18W USB-A and USB-C wall charger module, combined USB socket module, VETi 3 USB charging module
Technical Specifications
- Product Code: 3VM212BZ
- Module Size: 2 module
- Input Voltage: 220–240V AC
- Output Power: 18W maximum
- USB-A Output: 5V/3A or 9V/1.8A
- USB-C Output: 5V/3A or 9V/2A
- Combined USB Output: 5V/2.1A maximum
- No-Load Consumption: 0.1W maximum
- Safety Standard: IEC 62368-1
- Approval: LOA
- Finish: Bronze
- Dimensions (H x L x W): 32mm x 100mm x 50mm
- Weight: 0.15 kg
Key Features
- Combined USB-A and USB-C charging ports
- Supports fast charging up to 18W
- Designed for installation in compatible modular power-point systems
- Overcharge protection helps protect connected device batteries
- Low standby consumption of 0.1W maximum
- Two-module format with bronze finish
- Suitable for charging phones, tablets and other USB-powered devices
Professional Installation Requirements
- Mains-connected equipment. Installation should be performed by a licensed electrician in accordance with applicable Australian wiring requirements, including AS/NZS 3000, and the manufacturer's installation instructions. Confirm compatibility with the selected modular frame, cover plate and wall box before installation.
Applications
- Residential USB charging points
- Commercial and office power-point installations
- Bedside and work-area charging stations
- Hospitality, retail and public building modular socket systems
- Replacement or upgrade of compatible VETi modular switch and socket assemblies
Standards & Compliance
- AS/NZS 62368.1: Applicable Australian/New Zealand adoption of the IEC 62368-1 safety standard; the manufacturer lists IEC 62368-1 for this product
- AS/NZS 3000: Wiring installations should comply with applicable Australian electrical installation requirements
Environmental Benefits
- Low no-load consumption of 0.1W maximum helps reduce standby energy use
- Built-in charging at the power point can reduce reliance on separate plug-in charging adaptors
- Overcharge protection may help extend connected battery service life and reduce premature device replacement
Warranty Information
Major Tech's standard product warranty is 6 months from purchase or delivery, whichever is later, subject to the manufacturer's warranty conditions and proof of purchase.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock levels.
