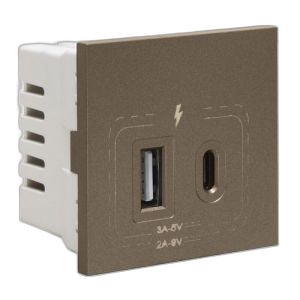

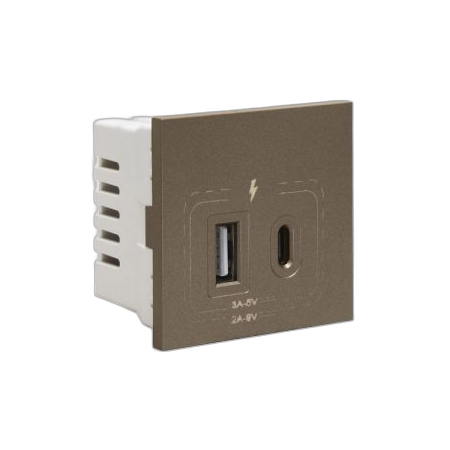

USB Charger Module USB-A and USB-C 18W 2 Module Grey MajorTech
MajorTech USB charger module features USB-A and USB-C ports, 18W output and two module size. Ideal for fast device charging at power points.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi 3 18W USB Charger Module, Combined USB-A/USB-C Socket Module, 2-Module USB Wall Charger
Technical Specifications
- Product Range: VETi 3 AURA
- Module Size: 2 module
- Input Voltage: 220–240 V AC
- Total Output Power: 18 W maximum
- USB-A Output: 5 V, 3 A; 9 V, 1.8 A
- USB-C Output: 5 V, 3 A; 9 V, 2 A
- Combined USB Output: 5 V, 2.1 A maximum
- No-Load Consumption: 0.1 W maximum
- Port Configuration: 1 x USB-A and 1 x USB-C
- Finish: Graphite grey
- Safety Approval Listed: IEC 62368-1 and LOA
- Dimensions (H x L x W): 50mm x 35mm x 50mm
- Weight: 0.1 kg
Key Features
- Combined USB-A and USB-C charging in one modular unit
- 18 W maximum fast-charging output
- Supports USB-A output up to 9 V, 1.8 A
- Supports USB-C output up to 9 V, 2 A
- Integrated protection helps prevent device overcharging and battery damage
- Designed for installation in compatible VETi 3 modular frames and cover plates
- Available in multiple VETi 3 finishes
- Low standby consumption of up to 0.1 W
Professional Installation Requirements
- Installation involves connection to 220–240 V AC mains and should be performed by a licensed electrician in accordance with applicable Australian wiring rules and manufacturer instructions.
Applications
- Residential wall-mounted USB charging points
- Commercial and office modular power-point installations
- Hotels, apartments and accommodation facilities
- Bedside, desk and workstation charging outlets
- Replacement or upgrade of compatible VETi 3 modular switch assemblies
Standards & Compliance
- AS/NZS 62368.1 is the relevant Australian/New Zealand safety standard for ICT and power-supply equipment; the manufacturer publishes IEC 62368-1 and LOA approval for this model, but Australian RCM or AS/NZS certification is not expressly stated.
- AS/NZS 3000 is applicable to the fixed electrical installation; installation compliance must be verified by the licensed electrician.
Environmental Benefits
- 15-year VETi 3 warranty supports extended service life and reduced replacement waste
- Low no-load consumption of up to 0.1 W helps minimise standby energy use
- Combines two charging ports into a wall module, reducing the need for separate plug-in chargers and associated packaging
- Replaceable modular format can reduce waste when upgrading or servicing compatible installations
Warranty Information
Major Tech lists a 15-year extended warranty for VETi 3 products, subject to the manufacturer’s warranty terms, proof of purchase, registration requirements where applicable and exclusions for misuse, unauthorised alteration, electrical surges and normal wear.
Available Now
Available through MajorTech and authorised electrical distributors, subject to distributor stock and regional availability.
