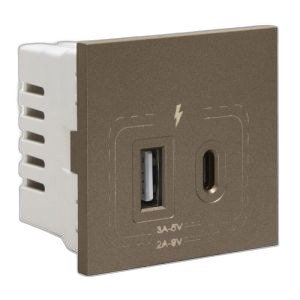

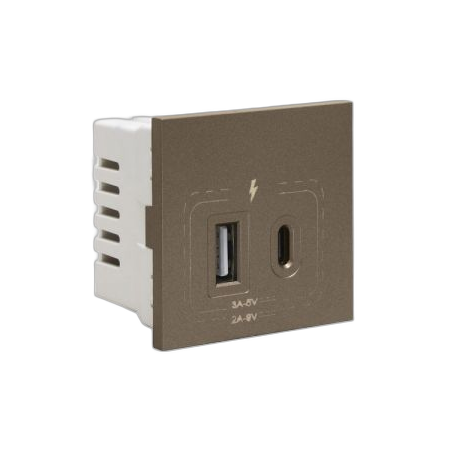

USB Charger Module USB-A and USB-C 18W 2 Module TM MajorTech
MajorTech USB charger module features USB-A and USB-C ports, 18W output and two module size. Ideal for fast device charging at power points.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech 3VM212TM, VETi 3 AURA USB Charger Module, 18W Dual USB Wall Socket Module
Technical Specifications
- Output Power: 18W maximum
- Input Voltage: 220–240V AC
- USB-A Output: 5V/3A or 9V/1.8A
- USB-C Output: 5V/3A or 9V/2A
- USB Output: 5V/2.1A maximum when both ports are used
- No-Load Consumption: 0.1W maximum
- Module Size: 2 module
- Finish: Titanium (TM variant)
- Safety Approval: IEC 62368-1 and LOA
- Dimensions (H x L x W): 50mm x 50mm x 32mm
- Weight: 0.1 kg
Key Features
- Combined USB-A and USB-C charging ports
- Up to 18W fast-charging output
- Suitable for installation in compatible VETi 3 modular switch and socket systems
- Overcharge protection helps protect connected device batteries
- Low standby consumption of 0.1W maximum
- Available in multiple VETi 3 finishes
Professional Installation Requirements
- Fixed 220–240V AC wiring must be installed and tested by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical requirements.
Applications
- Residential USB charging points
- Commercial and office power-point installations
- Hotels, apartments and accommodation facilities
- Bedside, desk and workstation charging outlets
- VETi 3 modular switch and socket assemblies
Standards & Compliance
- Installation should comply with AS/NZS 3000:2018 Wiring Rules. The manufacturer documentation located lists IEC 62368-1 and LOA approvals, but no specific Australian product certification for this exact 18W module was identified. ([moodle.unitec.ac.nz](https://moodle.unitec.ac.nz/pluginfile.php/312733/mod_resource/content/1/ASNZS3000-2018%2BA1.pdf?utm_source=openai))
Environmental Benefits
- Low no-load consumption of 0.1W maximum reduces standby energy use
- Integrated overcharge protection can help extend connected battery service life
- Built-in charging reduces reliance on separate plug-pack chargers and associated electronic waste
- Electronic components and plastics can be separated for responsible recycling at end of service life
Warranty Information
Major Tech lists a 15-year warranty period for the VETi 3 product range, subject to the manufacturer’s warranty terms and conditions. ([major-tech.com](https://www.major-tech.com/shipping-returns?utm_source=openai))
Available Now
Available through MajorTech and authorised Australian electrical distributors.
